Removing And Installing Multi-Function Switch: Removal

Hold engine by transport shackle in installed position with special tools 10 - 222A and 9591/1.

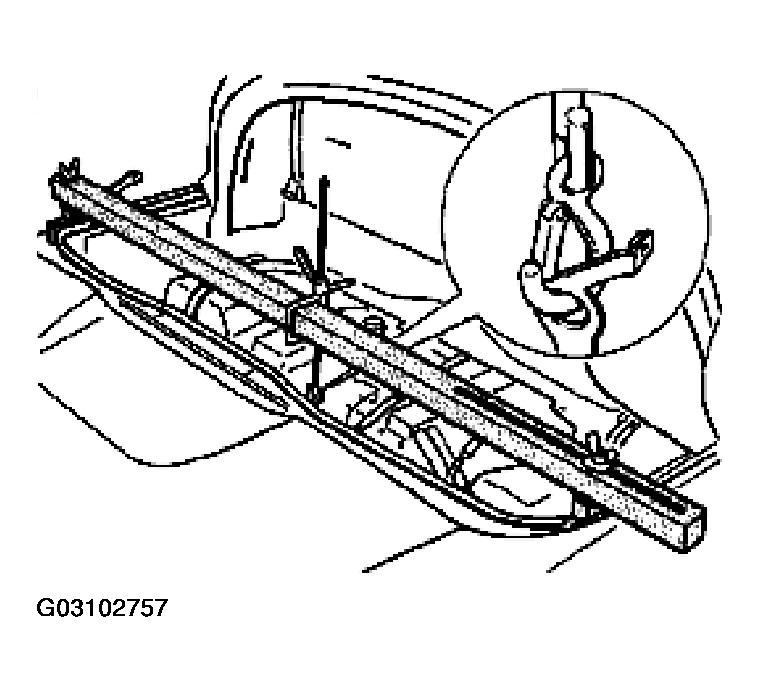

Fig 1: Holding Engine By Transport Shackle
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove the left catalytic converter.
Detach selector lever cable from deflection lever and transmission support.

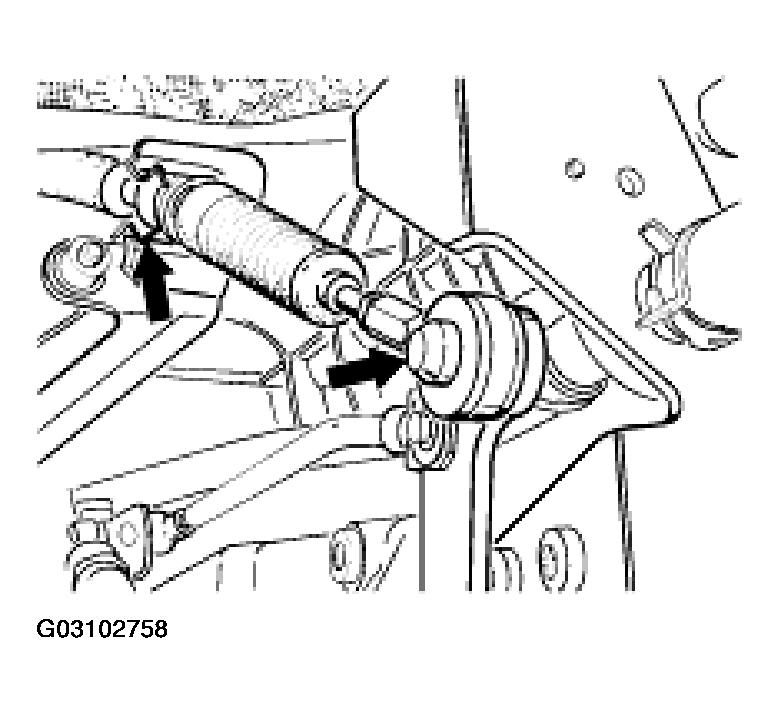

Fig 2: Detaching Selector Lever Cable From Deflection Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Place transmission jack under the transmission.
Remove the left transmission support with hydraulic mount.
NOTE:
- The fastening nut M12 (C) must not be loosened. The transmission support will otherwise be damaged.

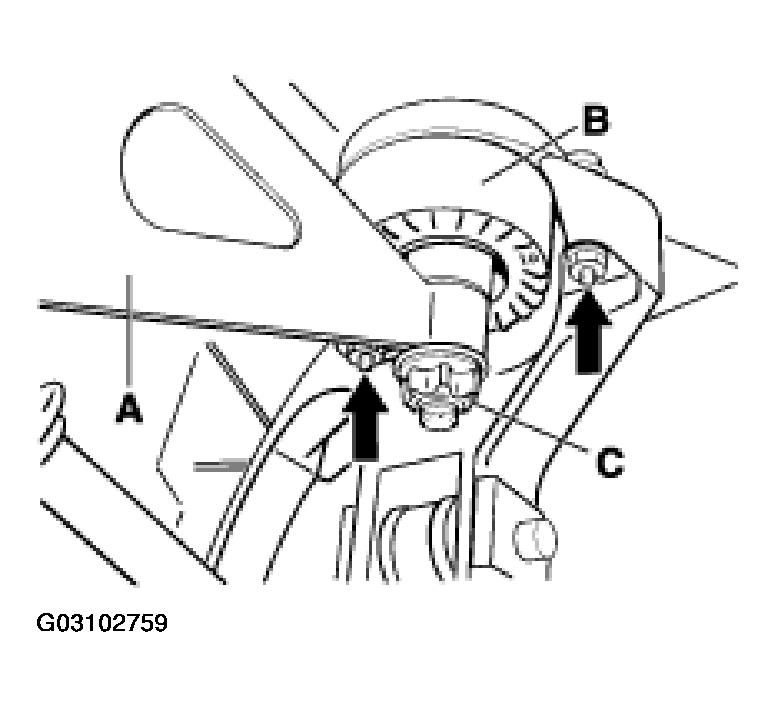

Fig 3: Loosening Fastening Nut From Left Transmission Support With Hydraulic Mount
Courtesy of PORSCHE OF NORTH AMERICA, INC.
1. A Transmission support
2. B Hydraulic mount
3. C Fastening nut M12
Release and disconnect cable connection to multifunction switch.
Unscrew fastening screws and pull switch off the selector shaft.

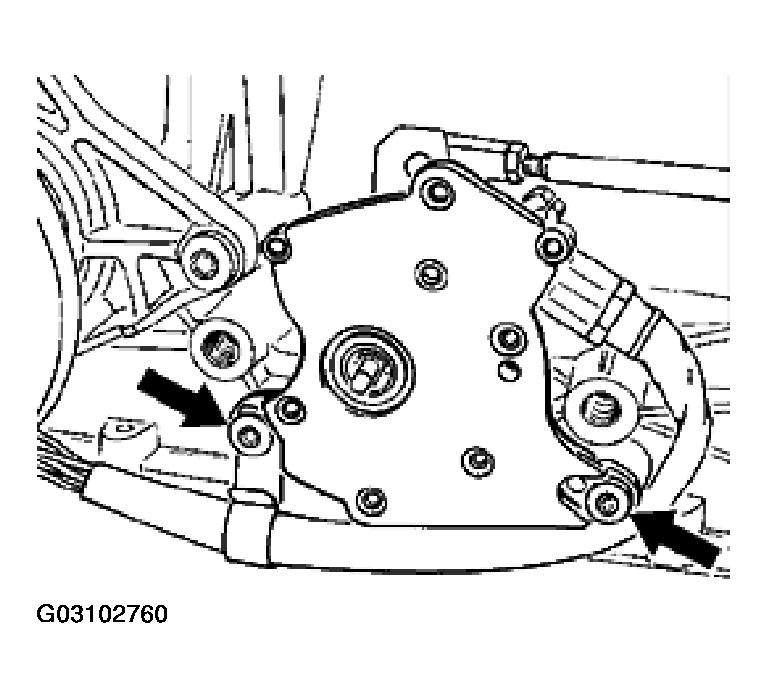

Fig 4: Pulling Switch Off Selector Shaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
