Removing And Installing Selector Knob: Removal

Lever off locking button with an angled pipe. The locking button must be pressed so that the pipe section can be inserted between the shift lever and the locking button. To do this, turn the ignition key to "1" position.

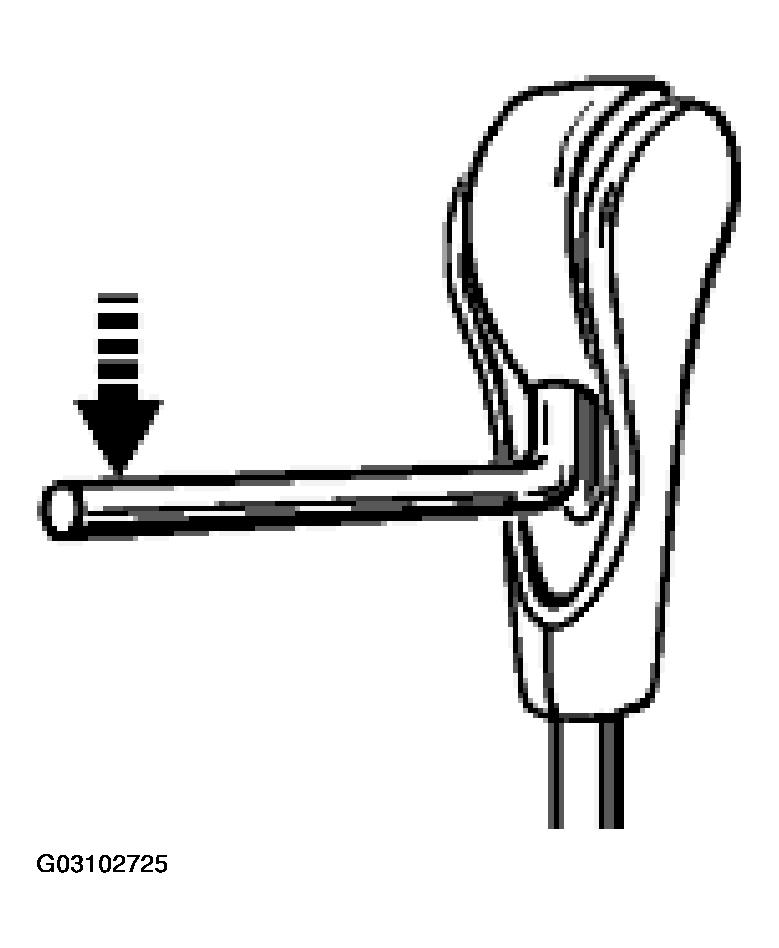

Fig 1: Levering Off Locking Button With An Angled Pipe
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove the compression spring and spring clip and pull off the selector knob.

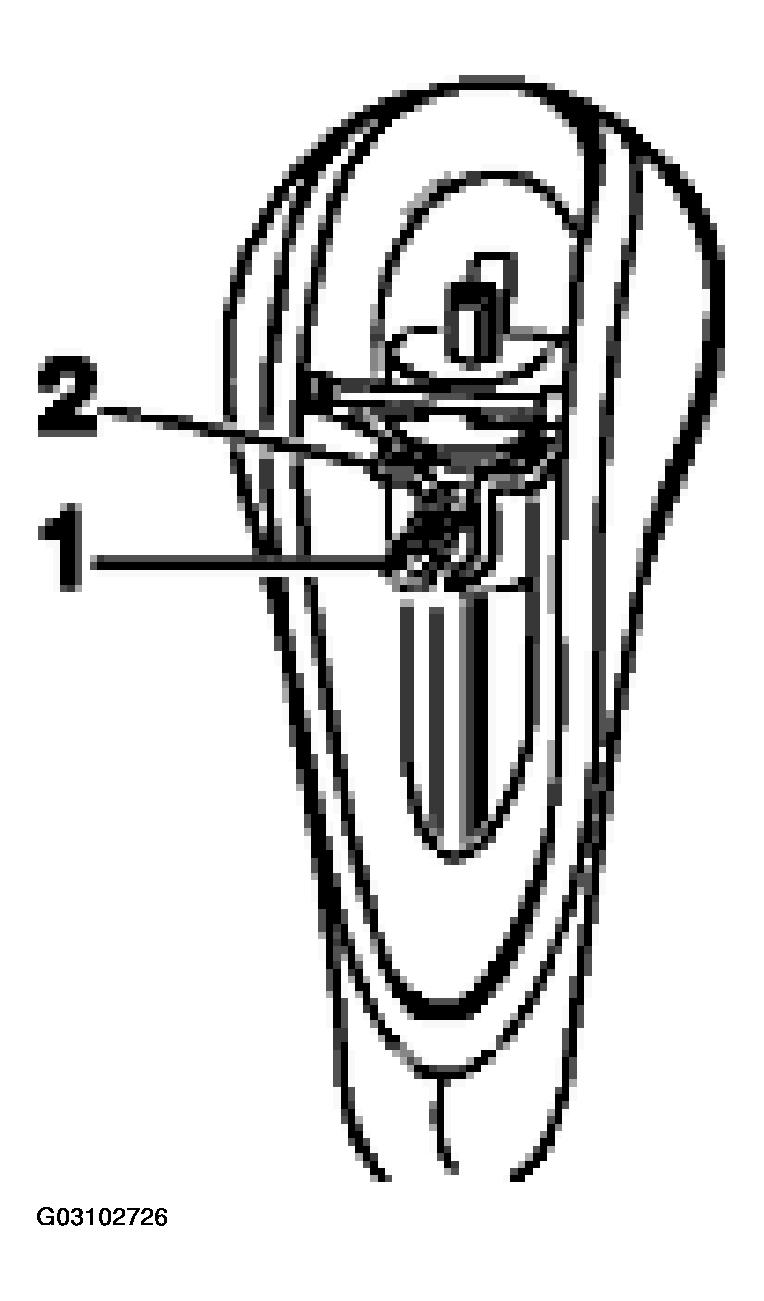

Fig 2: Removing Compression Spring And Spring Clip
Courtesy of PORSCHE OF NORTH AMERICA, INC.
