Removing And Installing Selector Support: Installation

Install in reverse order, observing the following points:

1. Tighten fastening nuts (11) to 10 Nm (7.5 ft.lb). See Figure .
2. Fastening selector lever cable:
   • Press the cable into the support bracket until the retaining clip engages in the housing (10). See Figure .
   • Press cable into the open adjuster (8) and close the adjuster (9). The locking sleeve must move to the end position automatically (9). See Figure .
3. Fastening keylock cable:
   NOTE:

   • The keylock cable should only be adjusted when the selector lever is fitted.
   • Install selector knob. Refer to REMOVING AND INSTALLING SELECTOR KNOB  .
   • Turn ignition key to position "1" (ignition on) and move selector lever to position "D". See Figure .
   • Open adjuster (3). See Figure .
   • Engage cable nipple (1) on the keylock lever (2). See Figure .
   • Press housing for adjuster (3) into the support bracket until the retaining clip (4) engages. See Figure .
   • Move selector lever to position "P" and turn ignition key to position "0" (removal position). See Figure .
   • Press cable sleeve (5) toward the selector support. See Figure .
   • Release cable and press locking button (7) until it engages. See Figure .
4. Check keylock function:
   • Turn ignition key to position "1" (ignition on). See Figure .
   • Move selector lever from position "P" to "D" and turn ignition key counter-clockwise. The removal position must not be reached. See Figure .
   • Release ignition key again and engage selector lever position "P". In this position, it must be possible to remove the ignition key and the locking button must be locked. See Figure .
5. Remove selector lever again.
6. Fit rotary valve in correct position and install center console.

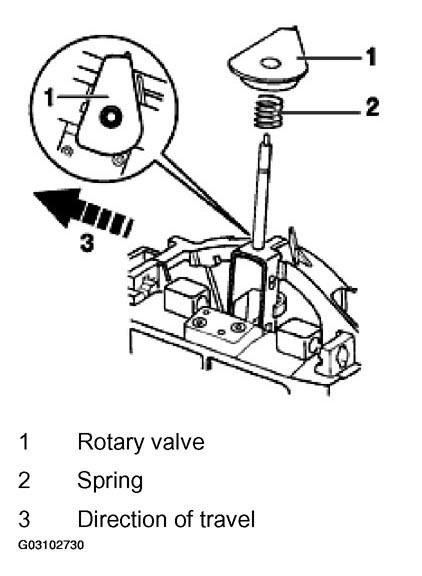

   Fig 1: Fitting Rotary Valve

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
