Install The TIPTRONIC Control Unit

Connect the connector on the control unit and insert the closing bracket until it engages.

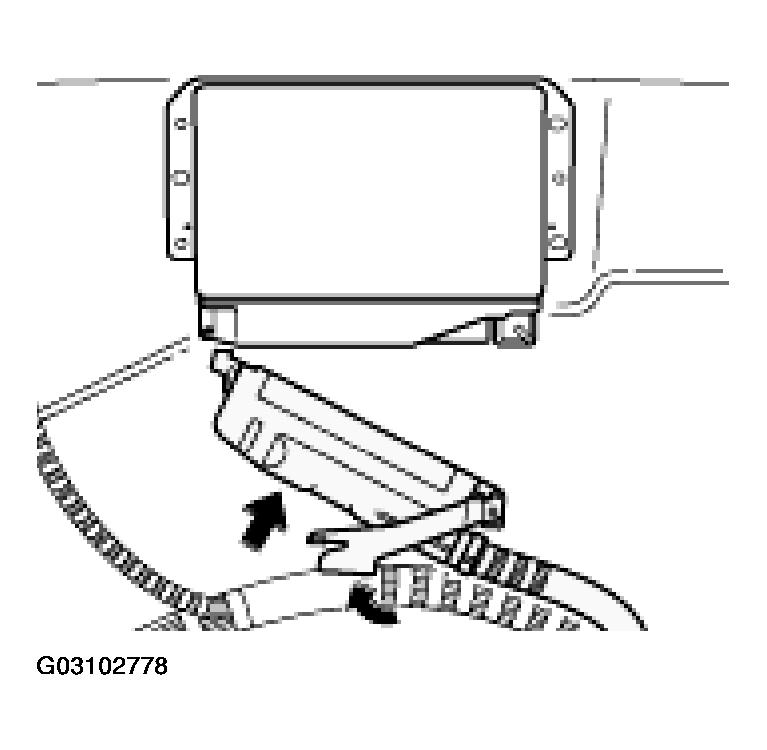

Fig 1: Connecting Tiptronic Control Unit Connector On Control Unit
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Position control unit and secure with the fastening nuts. Tightening torque: 10 Nm (7.5 ft.lb).

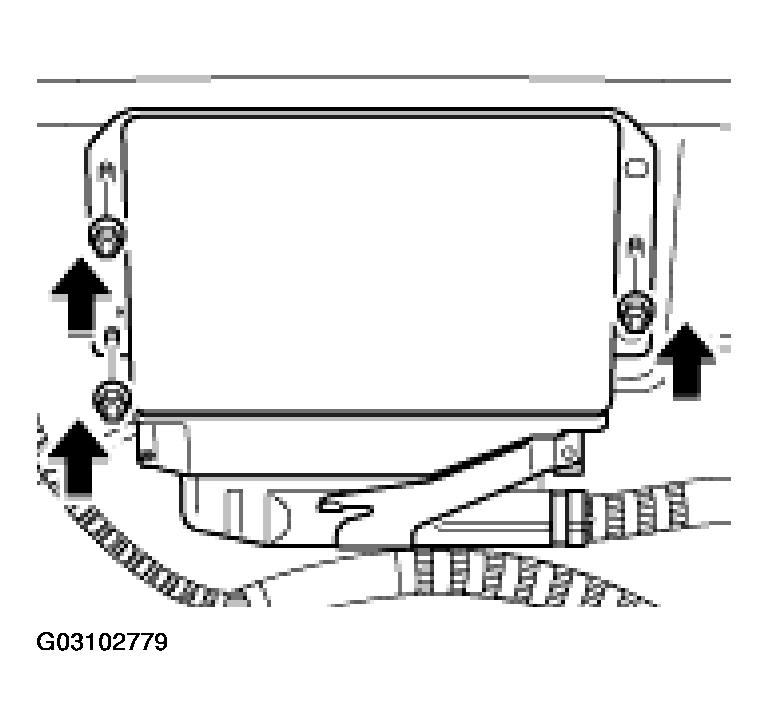

Fig 2: Installing Control Unit Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fold back the carpet lining into position and fasten with the clips.
Program the Tiptronic control unit with the Porsche System Tester. See CODING THE TIPTRONIC CONTROL UNIT .
