Engine M 96/20

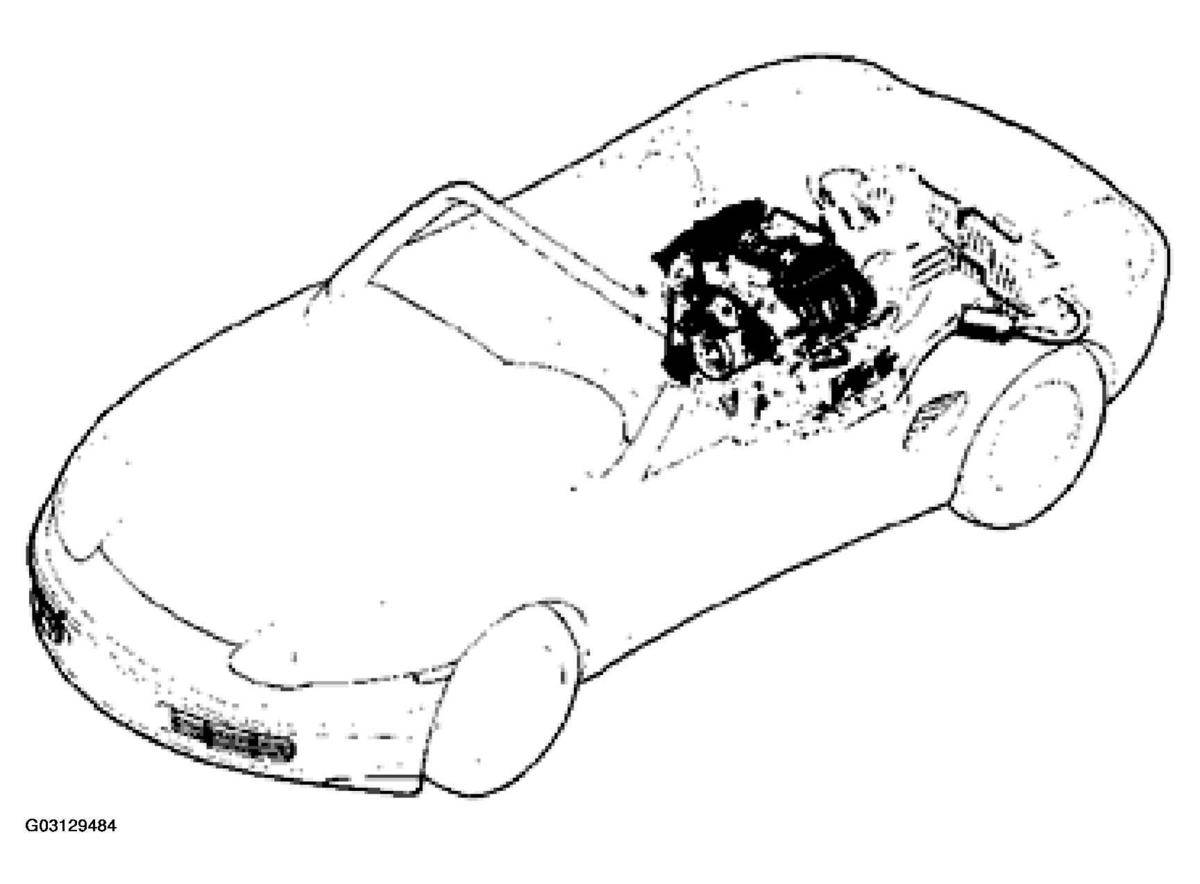

Fig 1: Identifying Engine Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ENGINE SPECIFICATIONS

Type	6-cylinder aluminium opposed-cylinder engine, water-cooled
Bore / stroke	mm	85,5 / 72
Displacement (actual)	cm³	2480
Compression ratio		11,0: 1
Max. engine powe	kW/PS	150/204
at engine speed	rpm	6000
Max. torque	Nm	245
at engine speed	rpm	4500
Engine control	Bosch M5.2 with static high-voltage distribution, sequential injection, cylinder-specific knock control, stereo oxygen-sensor control and diagnostic system.
Cylinder head	2 overhead camshafts with hydraulic valve clearance compensation
Camshaft drive	Porsche VarioCam
Type of fuel	98 premium unleaded
