Removing And Installing Torque-Converter Sealing Ring: Installation

Replace mounting-face ring if damaged.

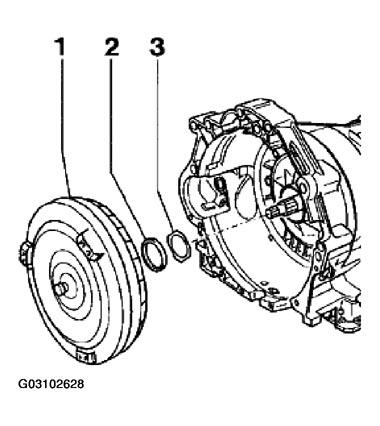

Fig 1: Identifying Mounting-Face Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
1. Torque converter
2. Sealing ring
3. Mounting-face ring
Thinly coat circumference and sealing lip of sealing ring with Vaseline and drive sealing ring home as far as the mounting face with special tool 3295.

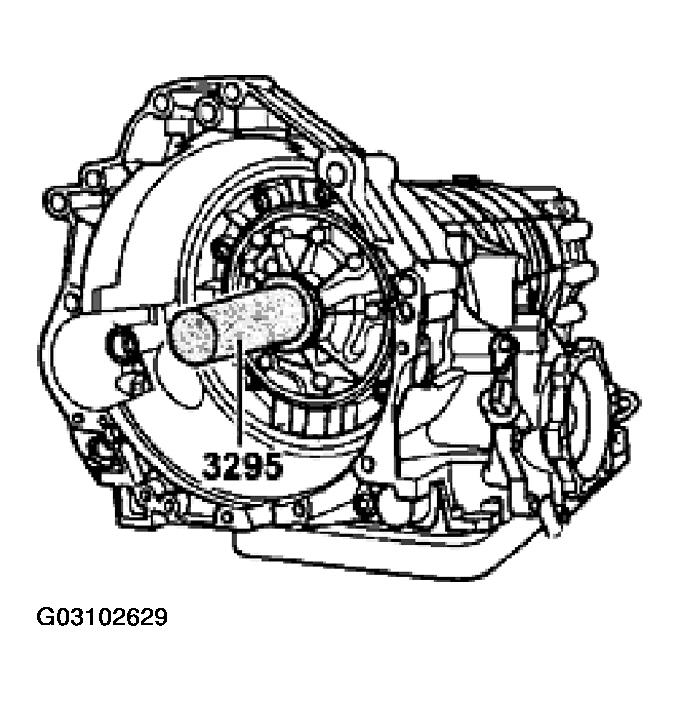

Fig 2: Driving Sealing Ring Home
Courtesy of PORSCHE OF NORTH AMERICA, INC.
