Disassembling And Assembling Final Drive
NOTE:

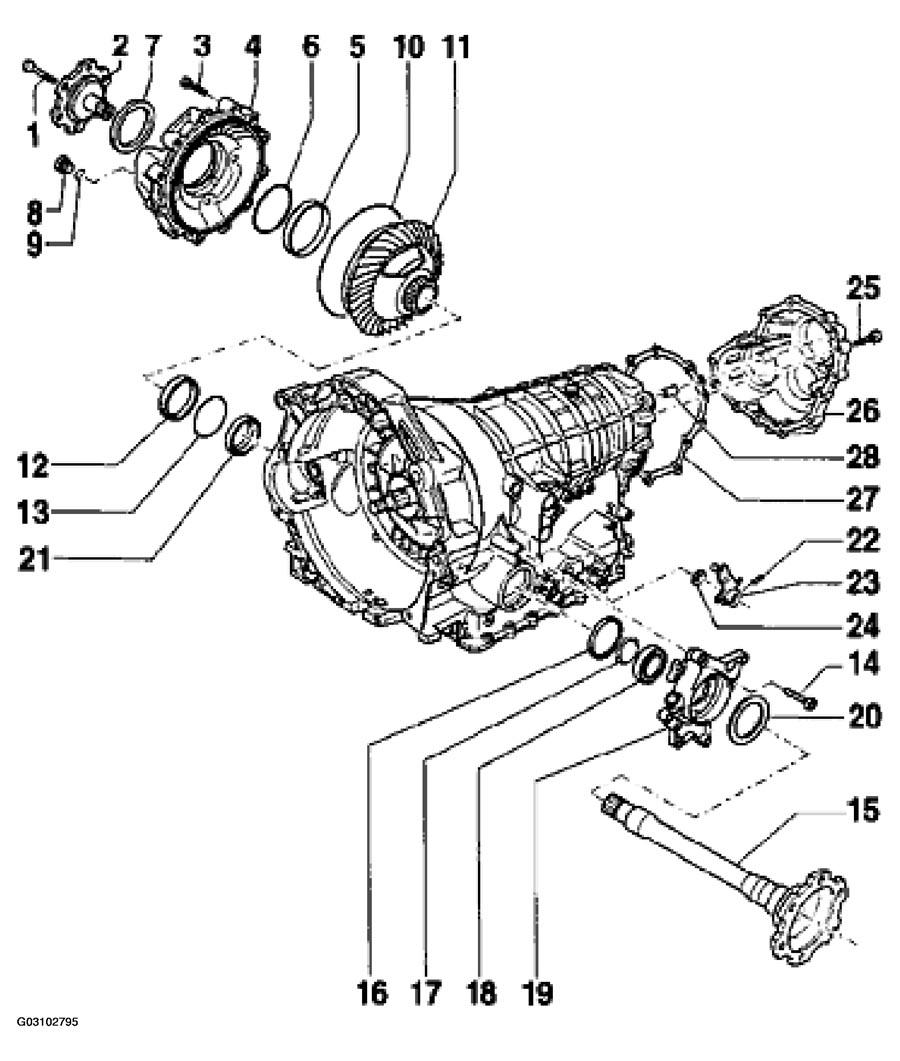

The parts shown in the figure can also be removed with the transmission installed.
FINAL DRIVE COMPONENTS DESCRIPTION
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1 | Screw | 1(1) | Tightening torque 25 Nm (18 ft.lb) | |||
| 2(1) | Short flanged shaft | 1 | ||||
| 3(1) | Screw | 12 | Tightening torque 23 Nm (17 ft.lb) | |||
| 4(1) | Cover for final drive | 1 | ||||
| 5(1) | Tapered roller bearing outer race | 1 | Without press fit | |||
| 6(1) | Adjusting shim | X | Is calibrated and must not be exchanged for an approximate substitute | |||
| 7(1) | Sealing ring | 1 | Refer to REMOVING AND INSTALLING SEALING RING FOR SHORT FLANGED SHAFT . | |||
| 8(1) | Plug | 1 | Tightening torque 30 Nm (22 ft.lb) | |||
| 9(1) | Toroidal sealing ring | 1 | Always replace. Coat with transmission oil | |||
| 10(1) | Toroidal sealing ring | 1 | Always replace | |||
| 11(1) | Differential | 1 | ||||
| 12(1) | Tapered roller bearing outer race | 1 | Without press fit | |||
| 13(1) | Adjusting shim | X | Is calibrated and must not be exchanged for an approximate substitute | |||
| 14(1) | Screw | 3 | Tightening torque 23 Nm (17 ft.lb) | |||
| 15(1) | Long flanged shaft | 1 | See REMOVING AND INSTALLING LONG FLANGED SHAFT . | |||
| 16(1) . | Toroidal sealing ring (square) | 1 | Always replace. Coat with transmission oil | |||
| 17(1) | Snap ring | 1 | ||||
| 18(1) | Ball bearing | 1 | ||||
| 19(1) | Mounting saddle | 1 | ||||
| 20(1) | Sealing ring | 1 | Refer to REMOVING AND INSTALLING SEALING RING FOR LONG FLANGED SHAFT . | Always replace | ||
| 21(1) | Double sealing ring | 1 | Refer to REMOVING AND INSTALLING FINAL DRIVE/TRANSMISSION HOUSING DOUBLE SEALING RING . | Always replace | ||
| 22(1) | Roll pin | 1 | ||||
| 23(1) | Selector lever | 1 | ||||
| 24(1) | Sealing ring | 1 | Always replace | |||
| 25(1) | Screw | 14 | Tightening torque 23 Nm (17 ft.lb) | |||
| 26(1) | Housing cover | 1 | ||||
| 27(1) | Gasket | 1 | Always replace | |||
| 28(1) | Dowel sleeve | 2 | ||||
|
||||||
