Removing and installing lid hinge: Notes

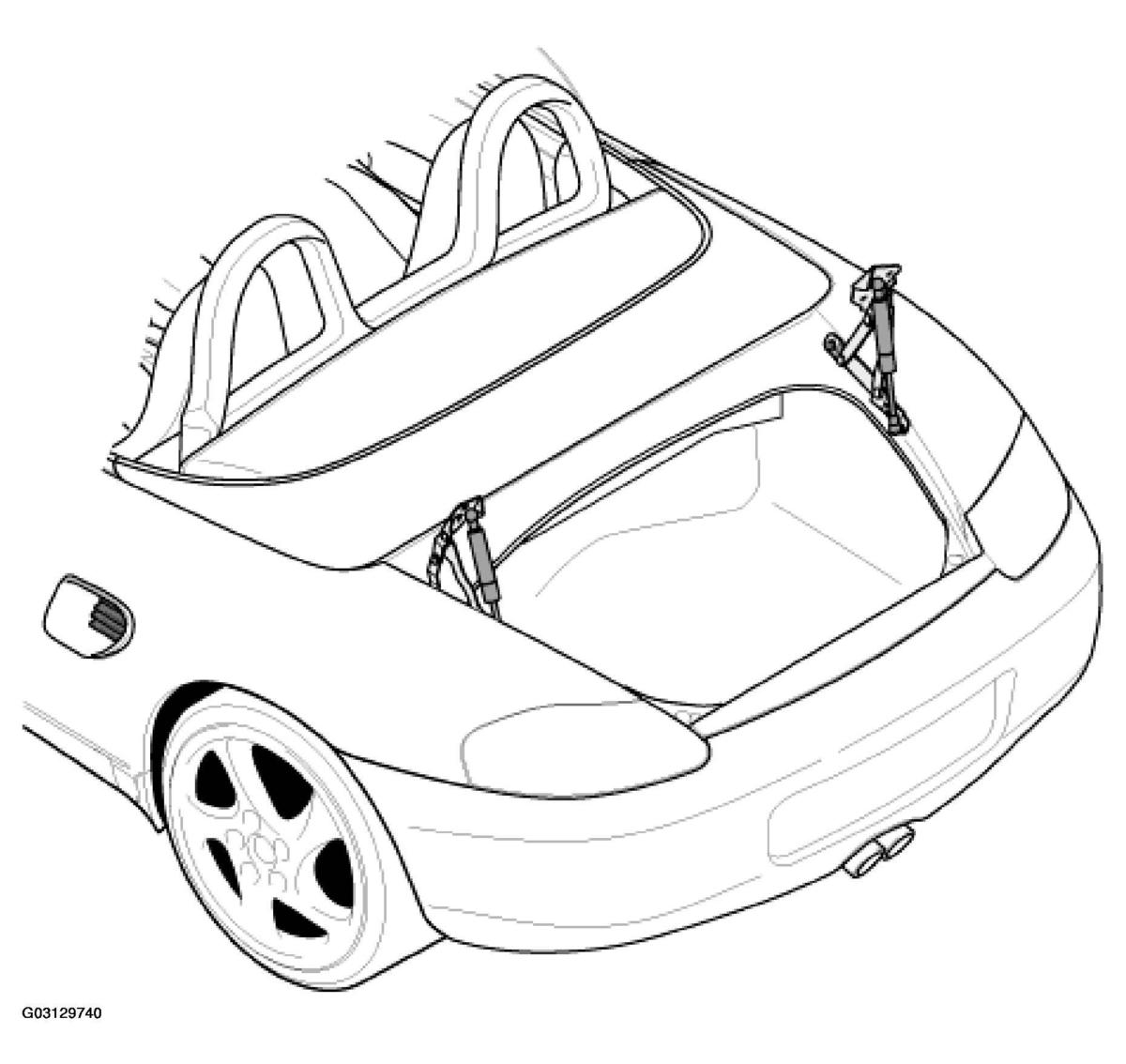

Fig 1: Identifying Rear Lid Hinge

Courtesy of PORSCHE OF NORTH AMERICA, INC.

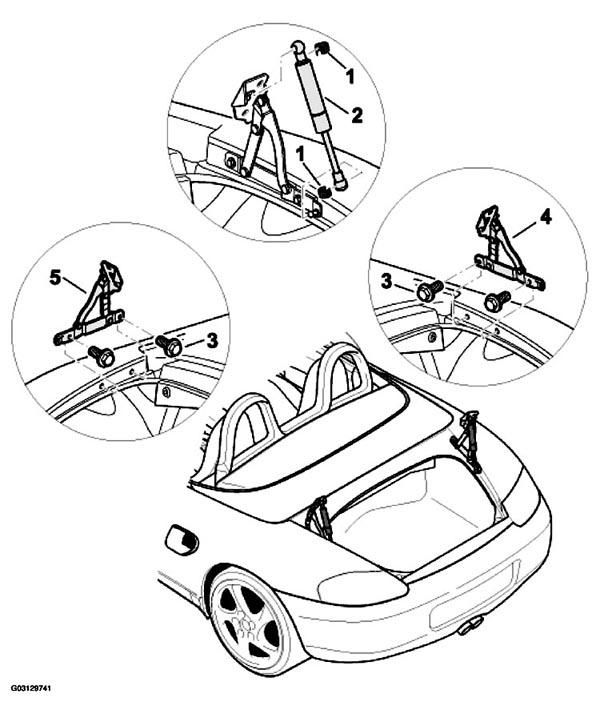

Fig 2: Removing And Installing Rear Lid Hinge Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

LID HINGE REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Retainer	4	Press out retainer.	Press retainer in.
2	Pneumatic spring	2
3	Fastening screw	8
4	Hinge right	1	Unscrew fastening screws -3- . See Fig 2 .	Screwing fastening screws-4-3-14- . See Fig 2 .
5	Hinge left	1	Undo fastening screws -3- . See Fig 2 .	Position left hinge -5-3-10 Nm (7.5 ftlb.)- . See Fig 2 .
