Removing And Installing Oil Protection Tube - Engine Removed: Installation

Coat sealing rings with tire mounting paste. Push tube onto pressure piece, special tool 9605. Place hand pressure piece, special tool 9604, onto the pressure piece.

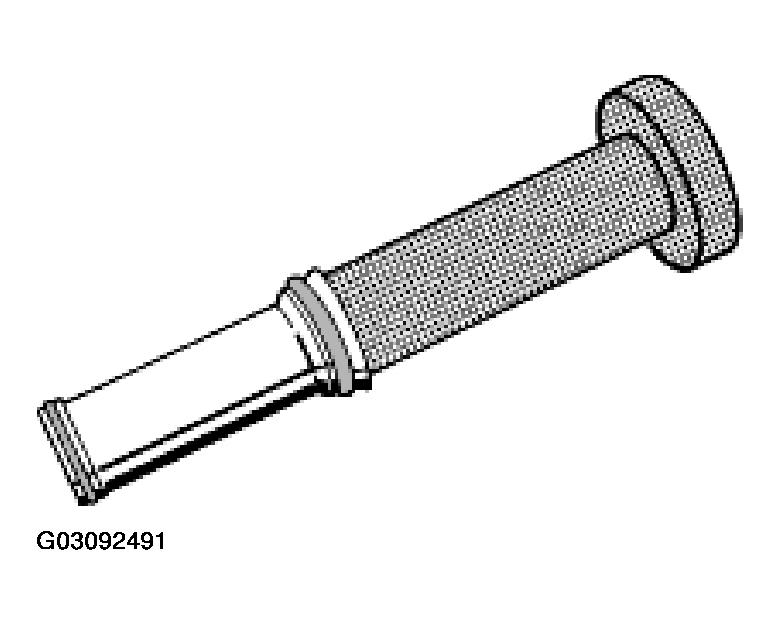

Fig 1: Pushing Oil Protection Tube Onto Pressure Piece
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Manually press the oil protection tube as far as it will go into the fitted cylinder-head cover.

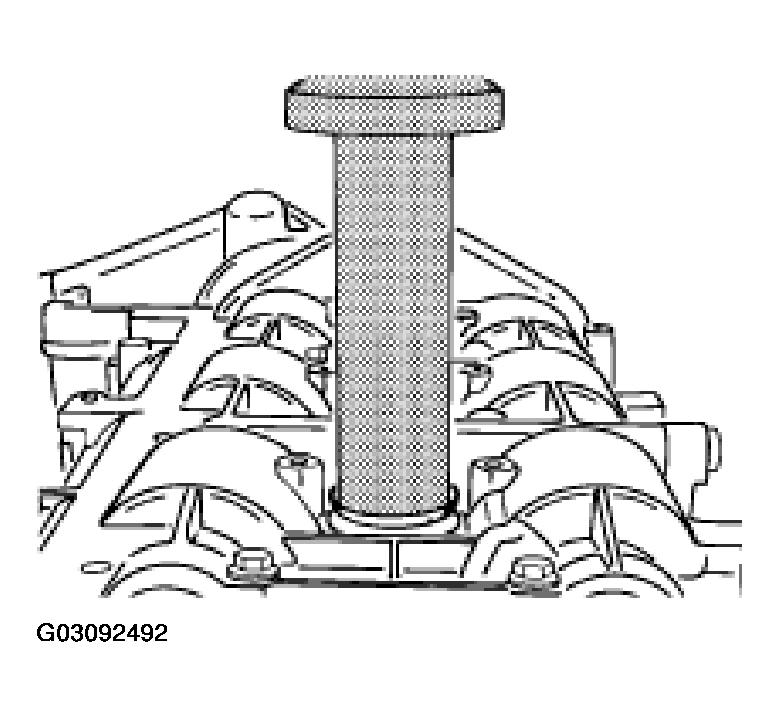

Fig 2: Pressing Oil Protection Tube Into The Fitted Cylinder-Head Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
