Removing and installing DME control unit: Removal

Put rear body-protection cover on the vehicle.
Press off expanding rivets of the luggage compartment lining with a removal tool .

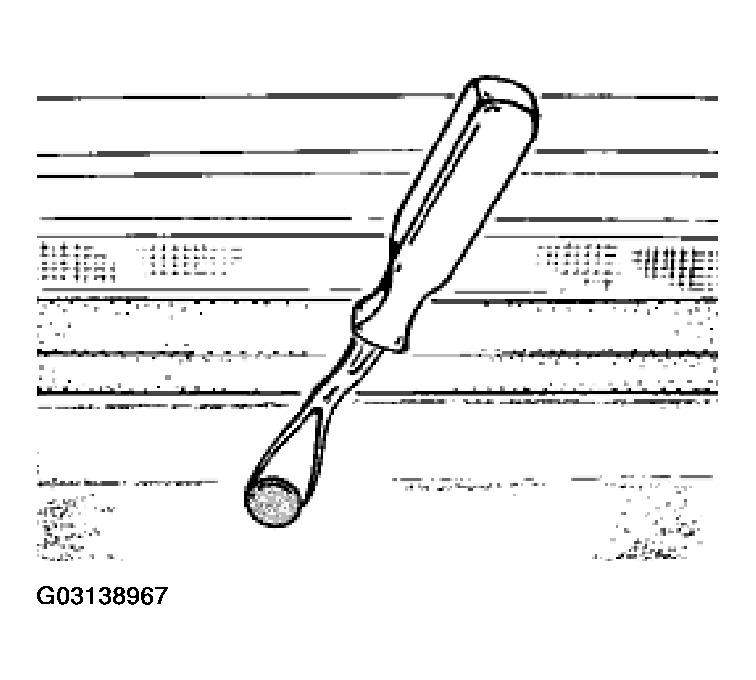

Fig 1: Pressing Off Expanding Rivets Of Luggage Compartment Lining
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Undo four hexagon nuts (wrench size 10 mm).

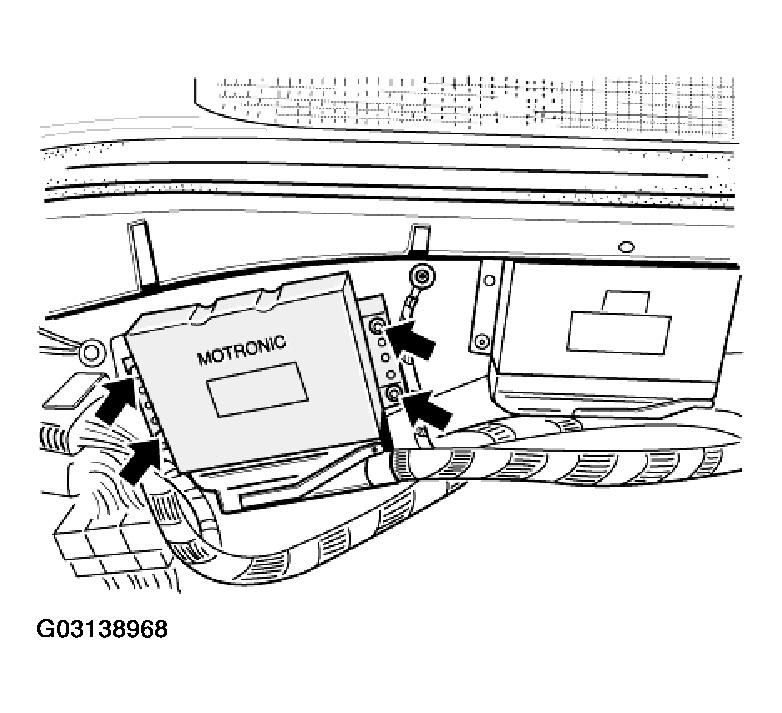

Fig 2: Removing Hexagon Nuts From DME Control Unit
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Take off control module. Open locking clip and pull the control module connector off.
