Test and adjusting values

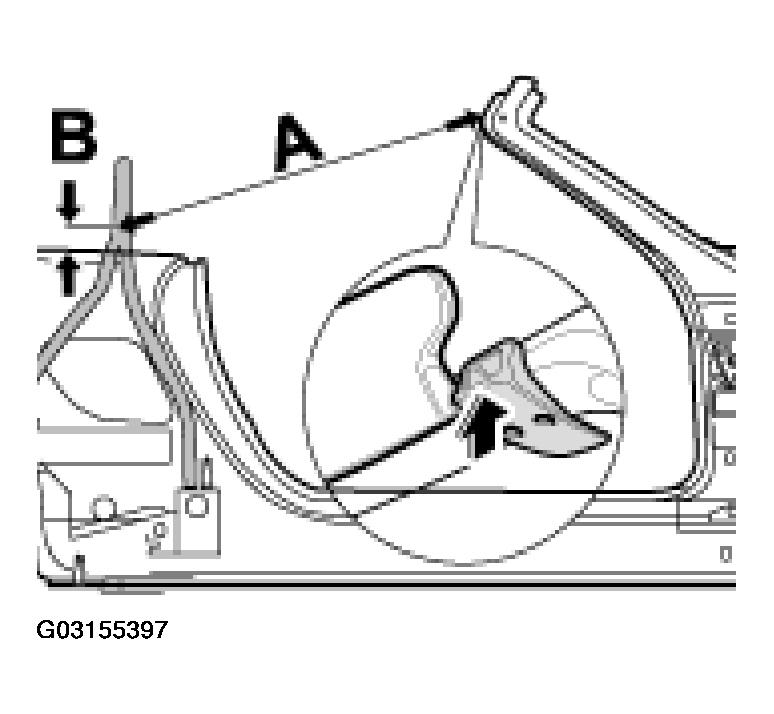

Measuring dimensions -A and B-
TEST & ADJUSTING VALUES - ROLL-OVER BAR
| Designation | Dimension | Note | |
|---|---|---|---|
| Adjusting the roll-over bar with the convertible-top frame in the body | -A- . See Fig 1 . | 799 +/- 1 mm | Oblique dimension is measured from centre of threaded bore for sash guide mount to underside of convertible top pin housing -arrow- . See Fig 1 . |
| -B- . See Fig 1 . | 39 +/- 1 mm | Measured from centre of threaded bore for sash guide mount to top edge of rear side section. | |
