Fuse assignments

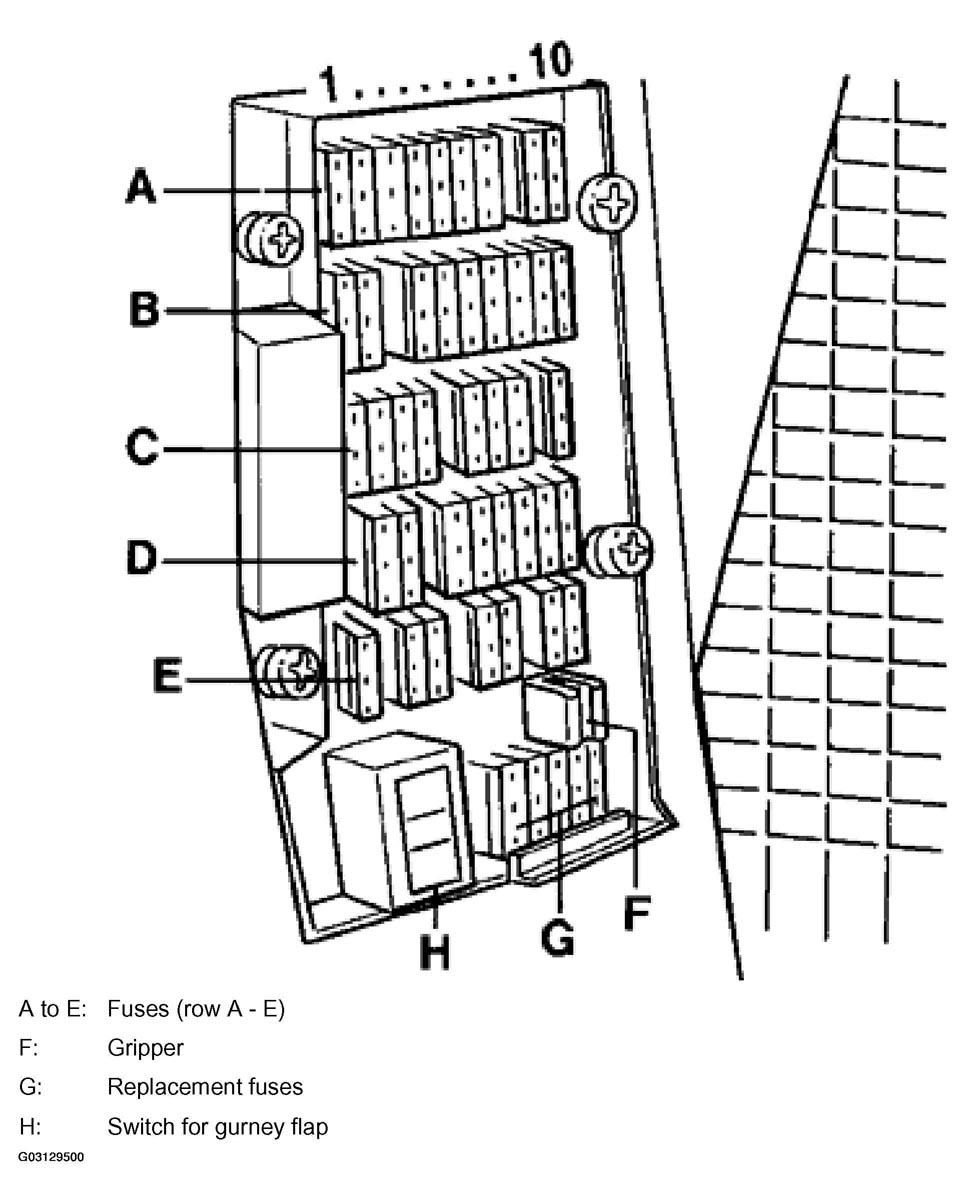

Fig 1: Identifying Fuse Assignments

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FUSE ASSIGNMENT SPECIFICATIONS

No.	Load	Amperage rating
Row A
1	High beam headlight, right	7.5
2	High beam headlight, left	7.5
3	Side lights, right	7.5
4	Side lights, left	7.5
5	Number plate light	7.5
6	Seat heating	25
7	Fog lights, rear fog light	25
8	Not used
9	Dipped beam headlight, right	7.5
10	Dipped beam headlight, left	7.5
RowB
1	Instrument cluster, Tiptronic, TC switch, diagnosis	15
2	Radio	7.5
3	Horn	25
4	Engine-compartment fan	15
5	Reversing lights	7.5
6	Control module for convertible top,
	direction indicator lights	15
7	Brake lights, cruise control	15
8	Control modules for central locking system,
	alarm system, DME	15
9	Control module for ABS, traction control	15
10	Instrument cluster, diagnosis, door mirrors	15
Row C
1	DME relay	25
2	Ignition relay, oxygen sensors	30
3	Control module for central locking system,
	alarm system, power windows	15
4	Fuel pump relay	25
5	Not used
6	Windshield wipers	25
7	Terminal X, control wiring	7.5
8	Radiator fan 2	30
9	Headlight washer	25
10	Radiator fan 1	30
Row D
1	Power windows	30
2	Door mirrors, heated rear window	30
3	Convertible-top drive	30
4	Not used
5	Cigarette lighter	15
6	Heater relay	30
7	Switch for hazard warning lights, DME control module	15
8	Retractable gurney flap	15
9	Sound package	15
10	Slot for additional equipment,
	Caution! Max. 5 A	7.5
Row E
1	Terminal 86 S, instrument cluster, radio, control modules for central locking, alarm system, airbag	7.5
2	Not used
3	Seat backrest adjustment, left	30
4	Seat backrest adjustment, right	30
5	Not used
6	Terminal 30, telephone	7.5
7	Air conditioning system	7.5
8	Not used
9	Terminal 15, telephone	7.5
10	Tiptronic control module	15

NOTE: If the power windows should fail, check fuse C3 (15 A) in addition to fuse D1 (30 A).
