Pedal Bearing Axle

It is essential to observe the following grease specification during assembly work on the pedals.

Lubrication required in most cases. Grease the bearing bushings marked X and the pedal bearing axle with Optimol, Optitemp LG 2, Part No. 000.043.203.37.

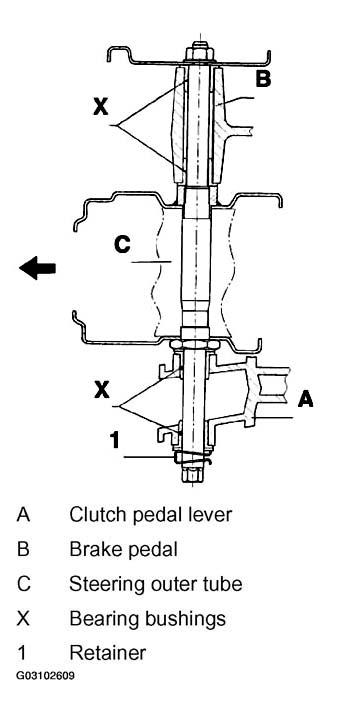

Fig 1: Sectional View Of Pedal Bearing Axle Assembly

Courtesy of PORSCHE OF NORTH AMERICA, INC.
