Removing And Installing Final Drive/Transmission Housing Double Sealing Ring: Tools

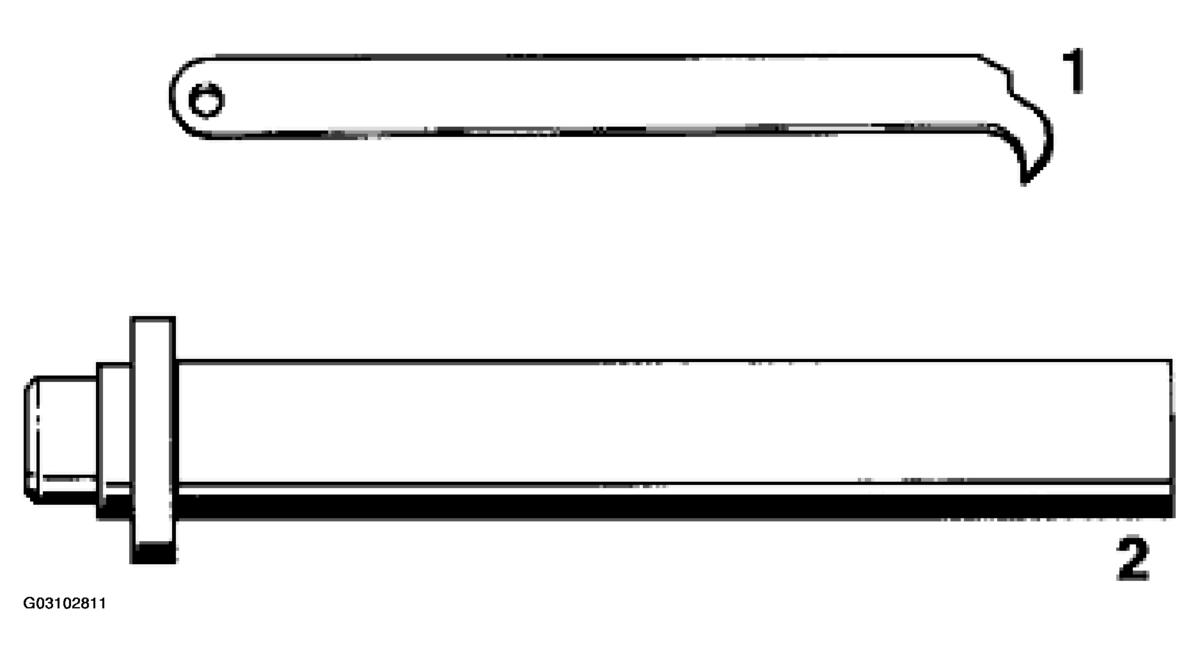

Fig 1: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS DESCRIPTION

No.

Designation

Special Tool

1⁽¹⁾

Hook VW

681

2⁽¹⁾

Pressure piece

3383

⁽¹⁾

NOTE:

A defective double sealing ring allows ATF or transmission oil to escape via the middle vent opening of the shaft seal (between the two sealing lips) into the converter bell housing.
A defective double sealing ring can also let ATF enter the differential. The latter is overfilled, and oil emerges at the differential vent opening.
