Removing And Installing Sealing Ring For Long Flanged Shaft: Installing

Push new sealing ring up to the stop with special tool 9615.

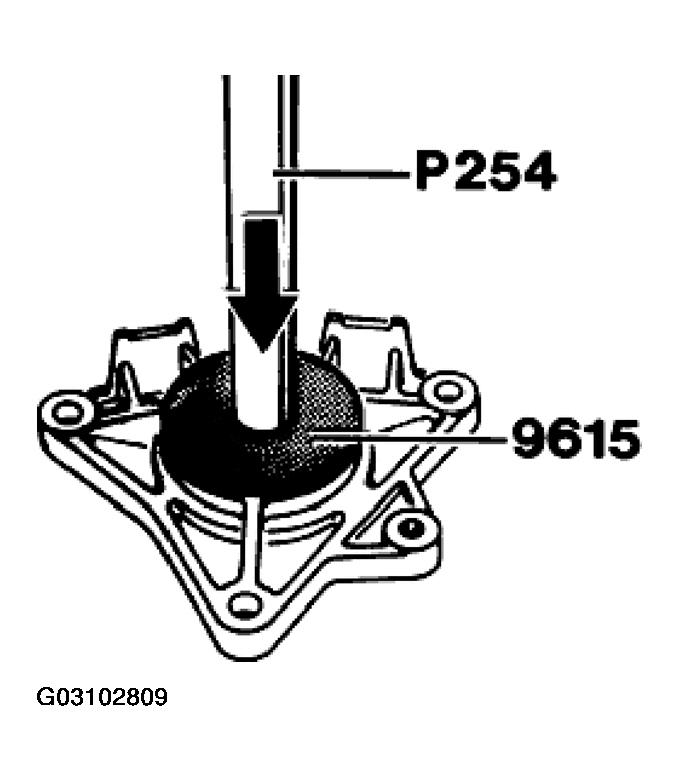

Fig 1: Pushing In New Sealing Ring For Long Flanged Shaft Using Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press mounting saddle with ball bearing onto flanged shaft.

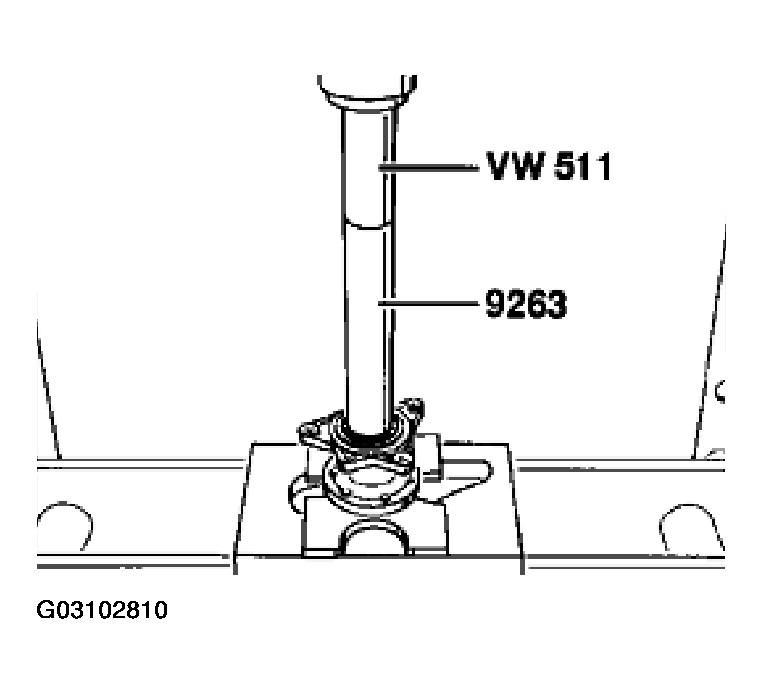

Fig 2: Pressing Mounting Saddle With Ball Bearing Onto Flanged Shaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert snap ring.
Install flanged shaft; check and top up transmission oil in final drive.
