Removing And Installing Sealing Ring For Short Flanged Shaft: Installation

Thinly coat sealing lip and circumference of sealing ring with Vaseline and insert sealing ring with special tool 3382 up to the stop.

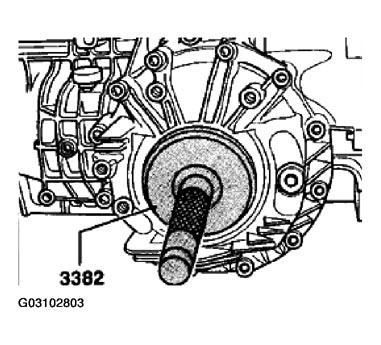

Fig 1: Inserting Sealing Ring Using Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- The sealing ring must fit in the housing at the same depth all round.
Check transmission oil in final drive and top up if necessary.
