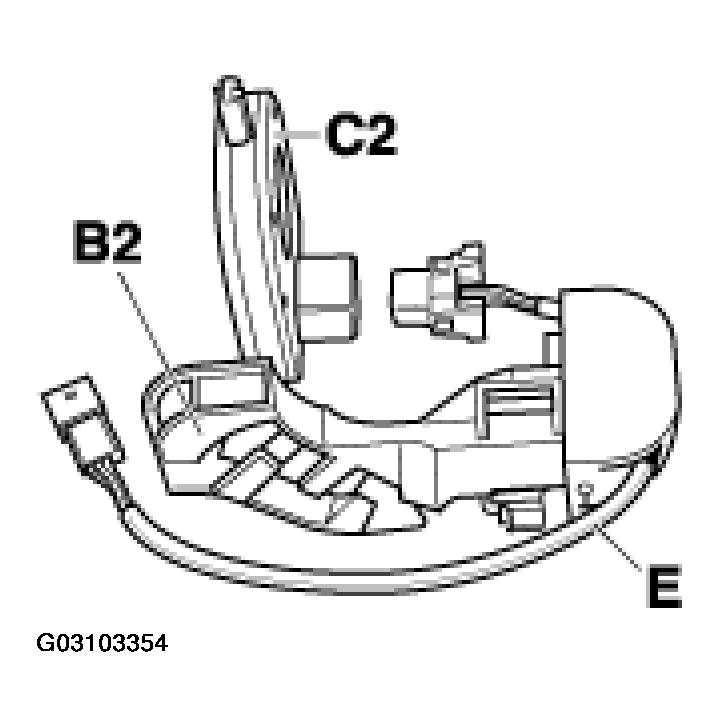

Overview of components
COMPONENTS SPECIFICATIONS
| Designation | New components | Replaced component |
|---|---|---|
| Steering angle sensor (C2 = new sensor) |
996.606.119.00 | 996.606.109.01 996.606.109.02 |
| Cable guide (B2 = new cable guide) |
996.610.123.01 | 996.610.123.00 |
| Adapter lead -E- | 996.622.906.00 | Additional lead (connection between the previous lead and the new steering angle sensor) |
PIN assignment of adapter lead -E-
PIN ASSIGNMENT OF ADAPTER LEAD E
| -Large plug- | Circuit | -Small plug- |
|---|---|---|
| PIN1 | Ground | PIN 4 |
| PIN 2 | + 12 volts (vehicle voltage) | PIN 3 |
| PIN 3 | CAN H | PIN 2 |
| PIN 4 | CAN L | PIN 1 |
