Removing And Installing Selector Lever Cable: Installation

Route the selector lever cable (1) through the rear wall to the correct position on the transmission and fasten on the transmission. See Fig 1

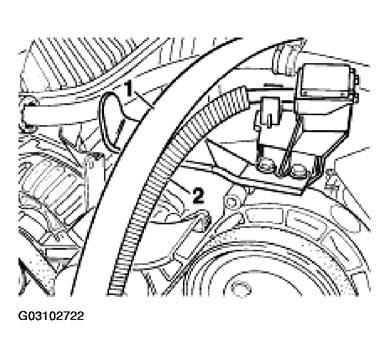

Fig 1: Identifying Selector Lever Cable Routing On Transmission
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert locking piece in the rear wall and fit rear wall cover.
Fasten cable on support bracket (2). See Fig 2 .
Fit cable holder.

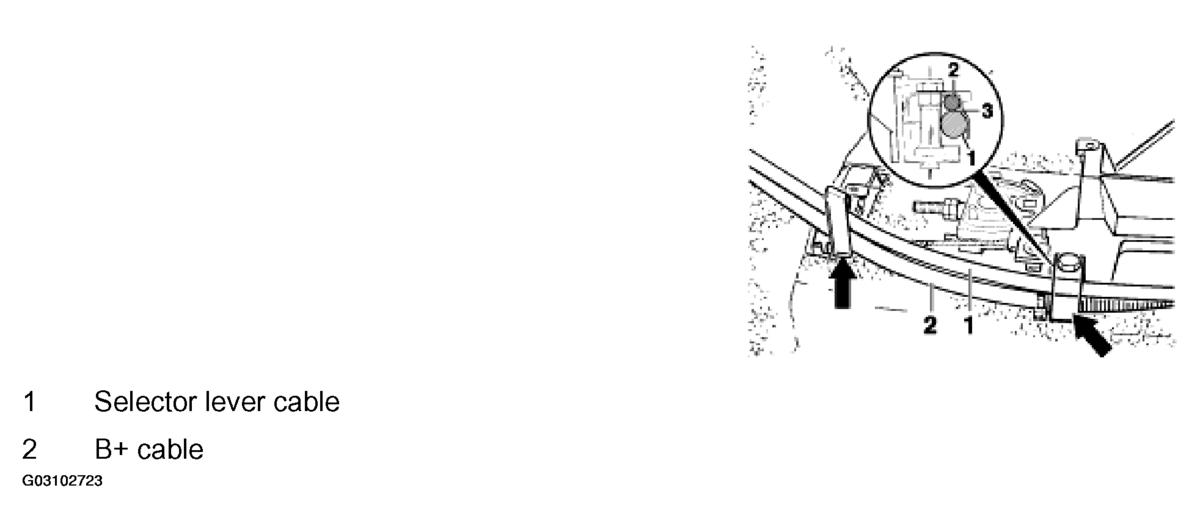

Fig 2: Fastening Cable On Support Bracket
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Move selector lever and transmission to position "P".
Press cable into the open adjuster (1) and close the adjuster (3). The locking sleeve must move to the end position automatically.
Check adjustment of the selector lever cable. See ADJUSTING SELECTOR LEVER CABLE .
