Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

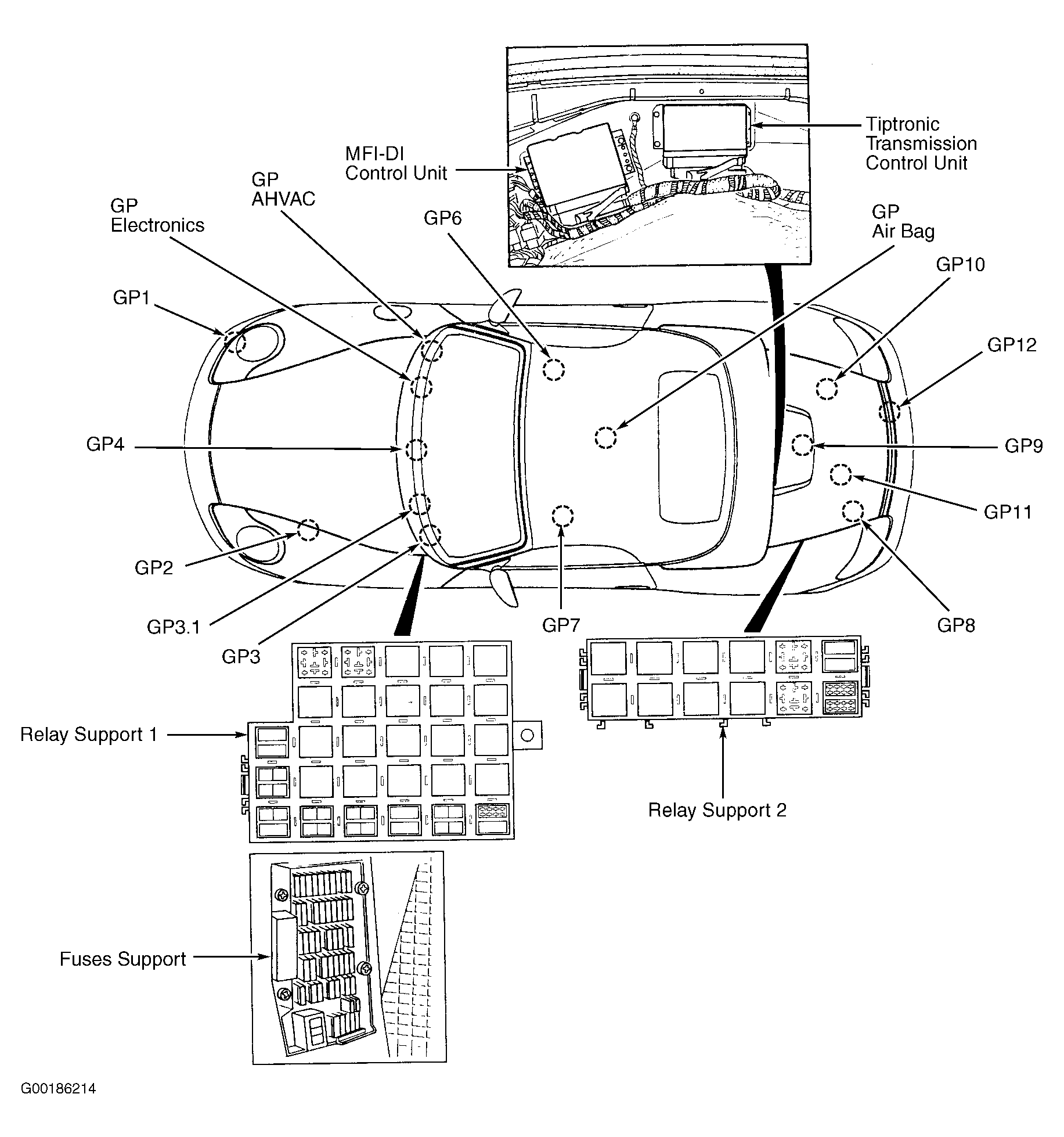

Fig 1: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

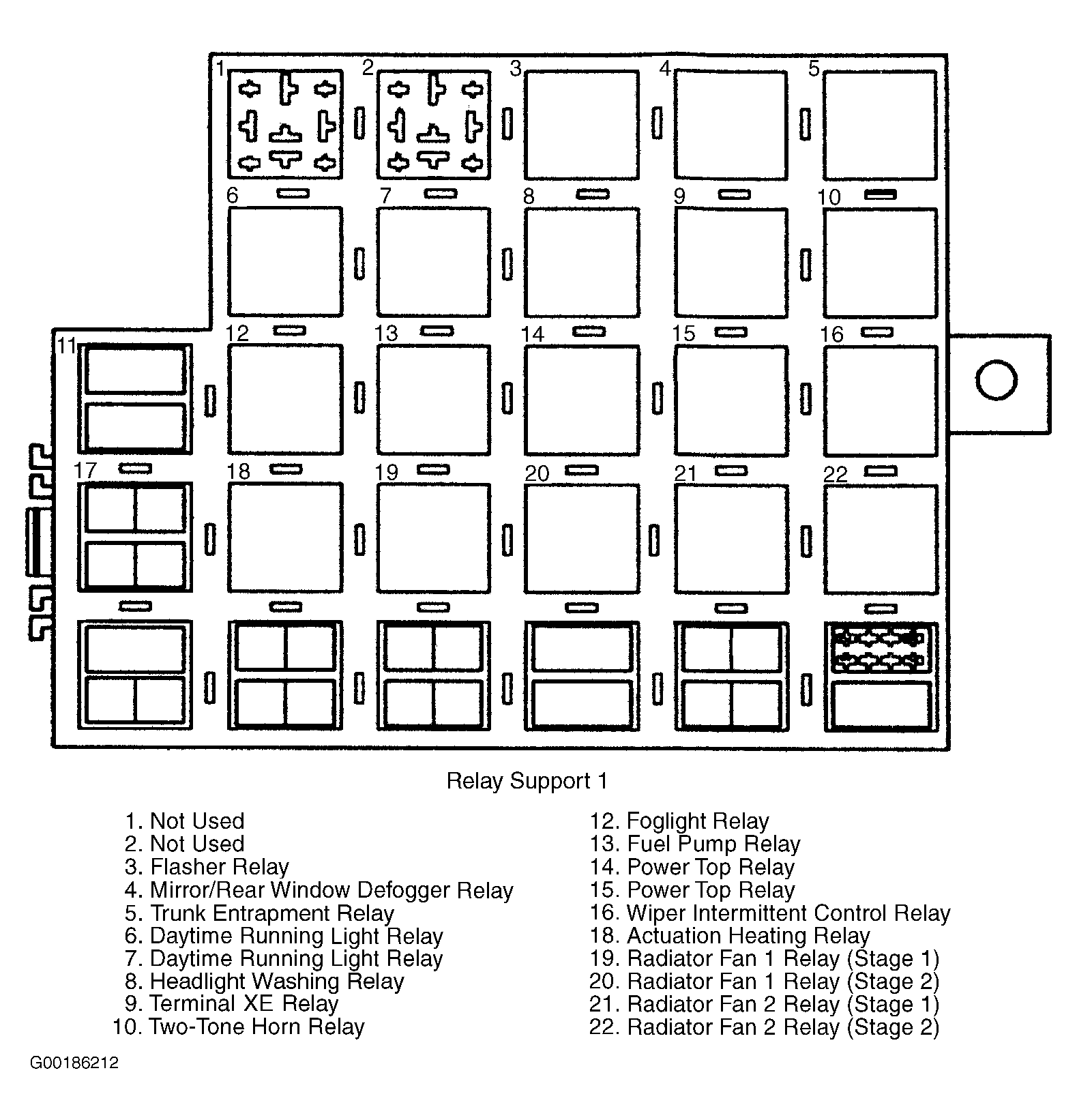

Fig 2: Relay Support 1

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 3: Relay Support 2

Courtesy of PORSCHE OF NORTH AMERICA, INC.

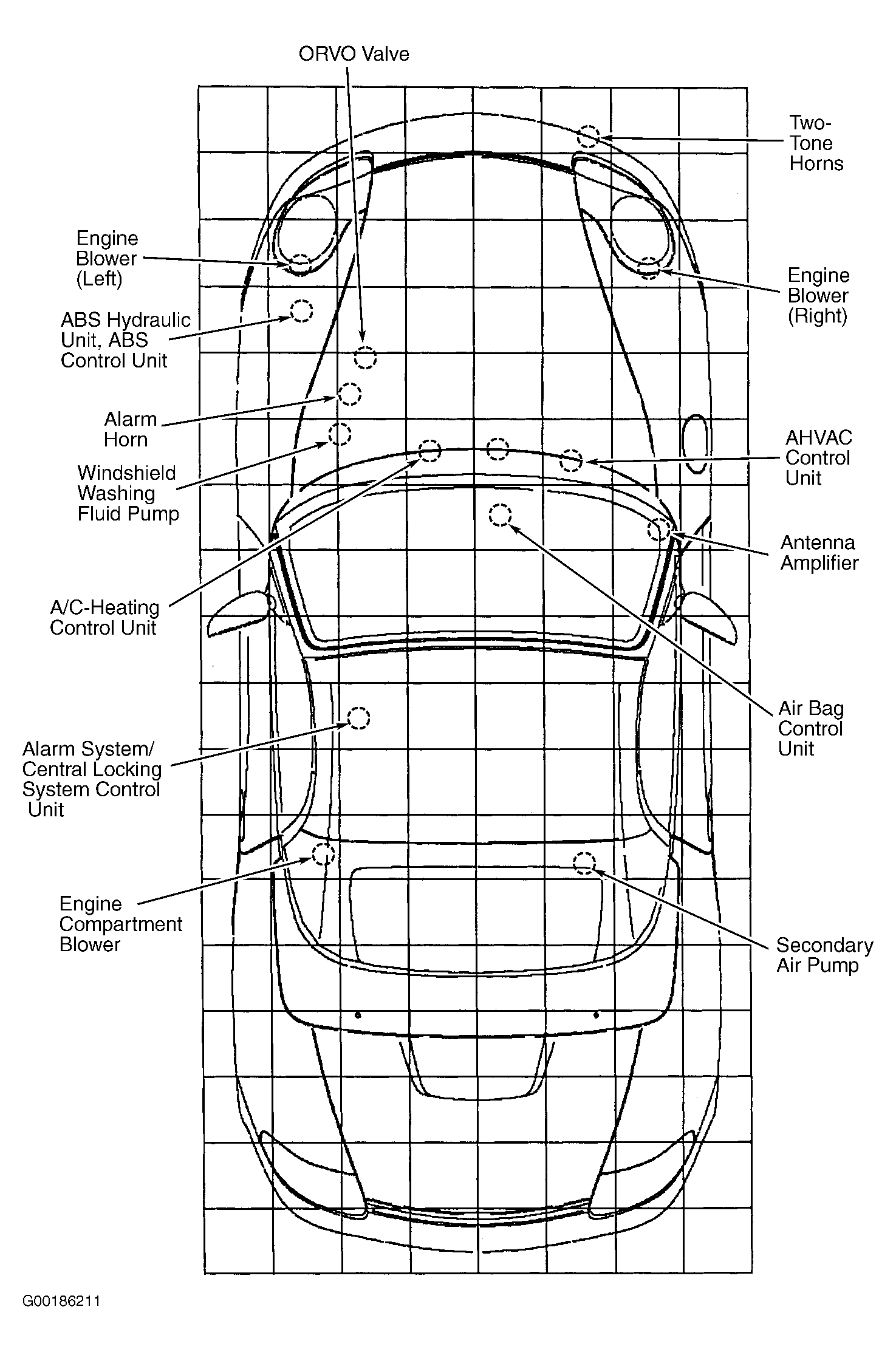

Fig 4: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.
