Open circuit

Diagnostic conditions

Possible cause of fault

Affected terminals

DME control module connector II, pin 1 and oxygen sensor jack, bank 2, pin 2

Diagnosis/troubleshooting

NOTE:
  • Do not use contact spray on the oxygen sensor plug connections as this may cause irreparable damage to the wiring (contamination of the oxygen sensor via the reference air channel).

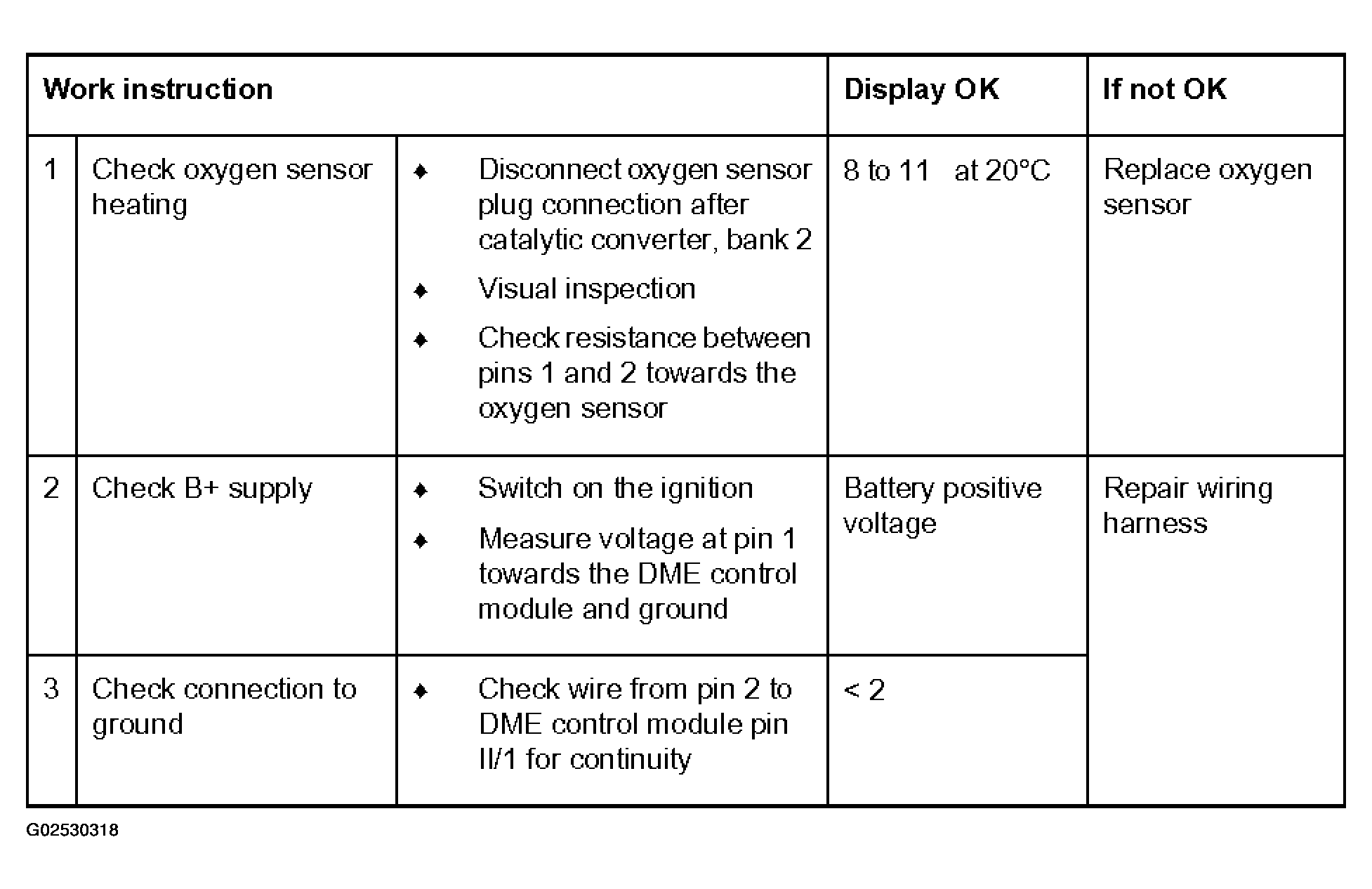

Fig 1: P0161 Work Instruction (Open Circuit)
G02530318Courtesy of PORSCHE OF NORTH AMERICA, INC.
