Throttle Jacking Unit, Control Range-Below Limit

Diagnosis conditions

• Driving with changing pedal position

Possible fault cause

• Open circuit
• Short circuit to B+

Affected terminals

Terminal I/7 and I/9

Diagnosis/Troubleshooting

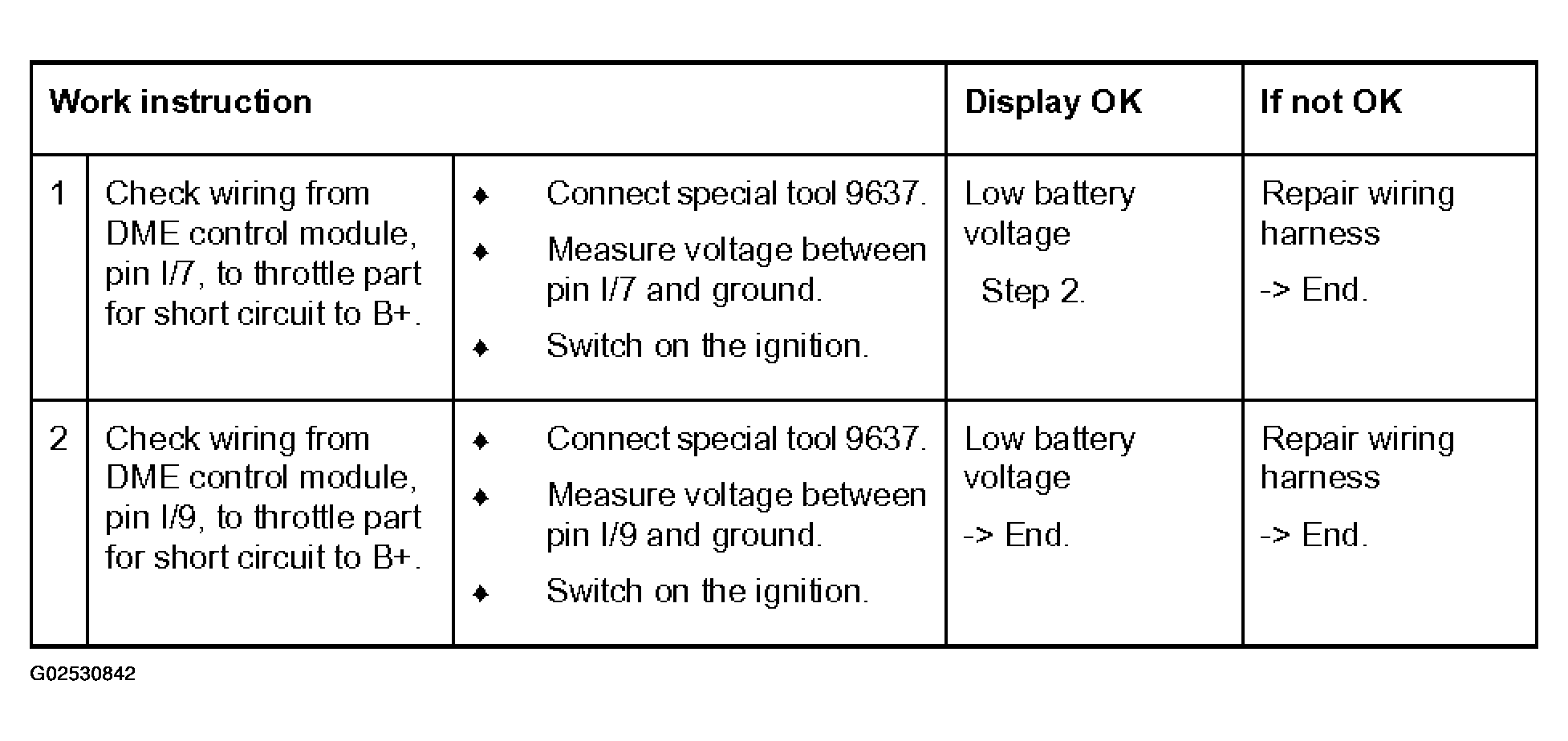

Fig 1: P1518 Work Instruction

Courtesy of PORSCHE OF NORTH AMERICA, INC.
