Adjusting Selector Lever Cable

  1. Move selector lever and transmission selector shaft to position "P".
  2. Adjust cable length at mounting head so that the cable can be fitted free of tension.

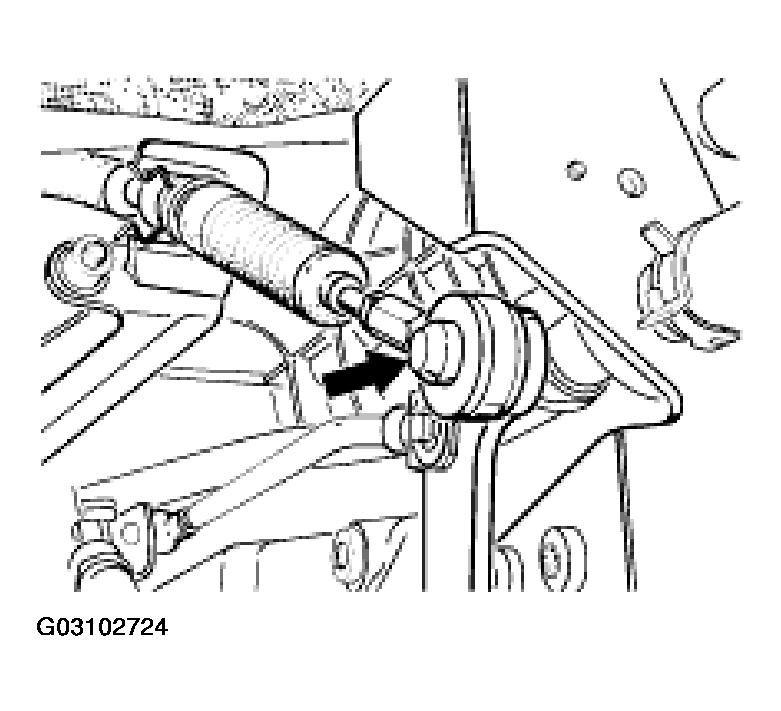

    Fig 1: Attaching Selector Lever Cable At Mounting Head
    G03102724Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Check adjustment. To do this, select all gears and check that the gear is indicated in the right-hand instrument cluster. Also change gate from "D" to "M". A straight movement must be possible without catching.
