Removing And Installing Sealing Ring For Selector Shaft: Installation

1. Thinly coat sealing lip and circumference of sealing ring with Vaseline.
2. Drive in sealing ring with special tool 3385 as far as the mounting face.

NOTE:

• The open side faces the transmission.

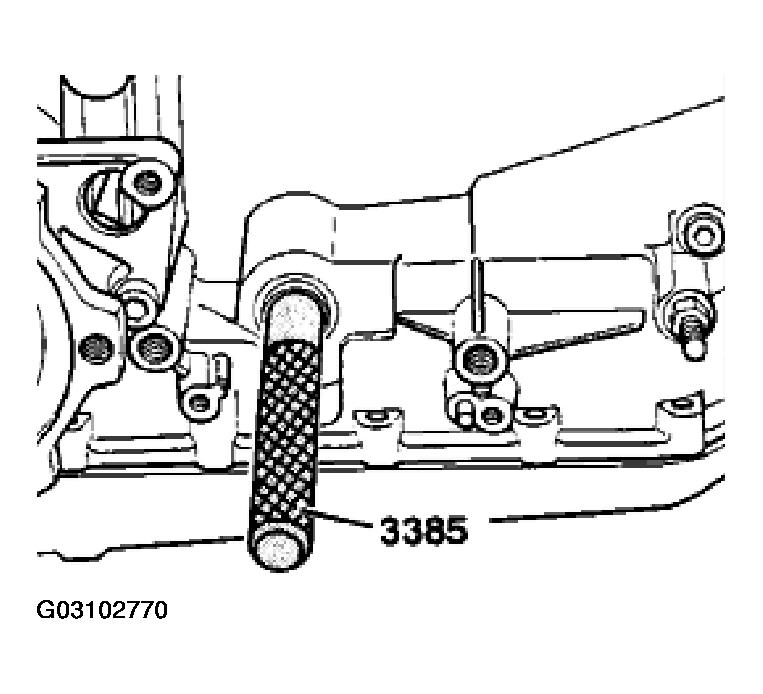

Fig 1: Installing Sealing Ring Using Special Tool (3385)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
