Removing And Installing Valve Tappets - Engine Removed: Tools

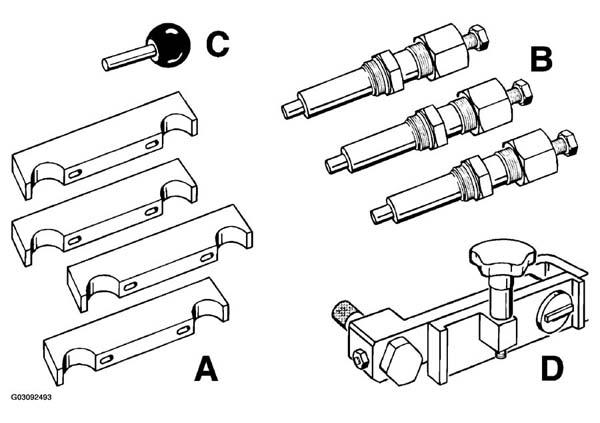

Fig 1: Identifying Special Tools - Valve Tappets

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS - VALVE TAPPETS

Item	Designation	Special tool	Explanation
A(1)	Holding-down device for camshafts	9611	1 set = 4 ea.
B(1)	Auxiliary chain tensioner for valve timing adjustment	9599	1 set = 3 ea.
C(1)	Fixing pin for belt pulley	9595	1 set = 2 ea. (use short fixing pin)
D(1)	Locking device for camshafts in timing position	9612
(1) For explanation see Fig 1.
