Engine, front view

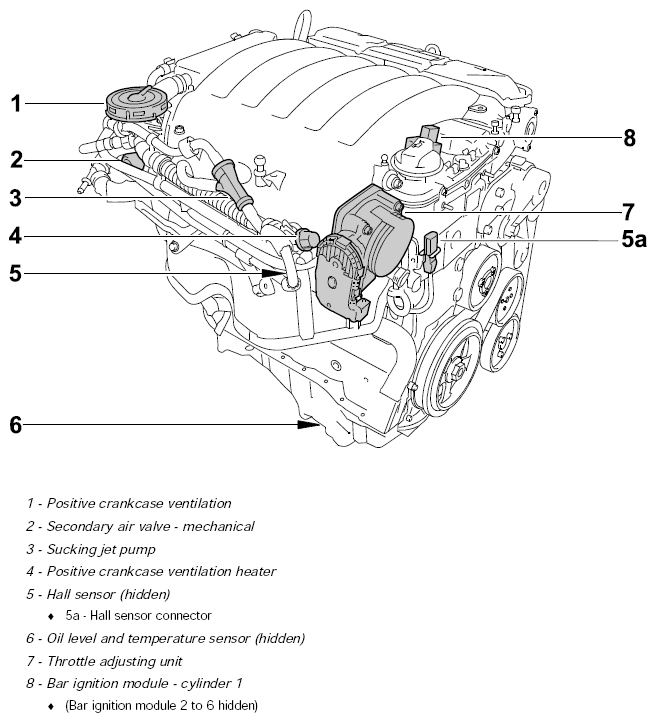

Fig 1: Engine - Front View (Cayenne V6)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
