Toe-In Adjustment (Rear)

  1. Before checking, see WHEEL ALIGNMENT PRELIMINARY CONDITIONS  and WHEEL ALIGNMENT WORK SEQUENCE  .

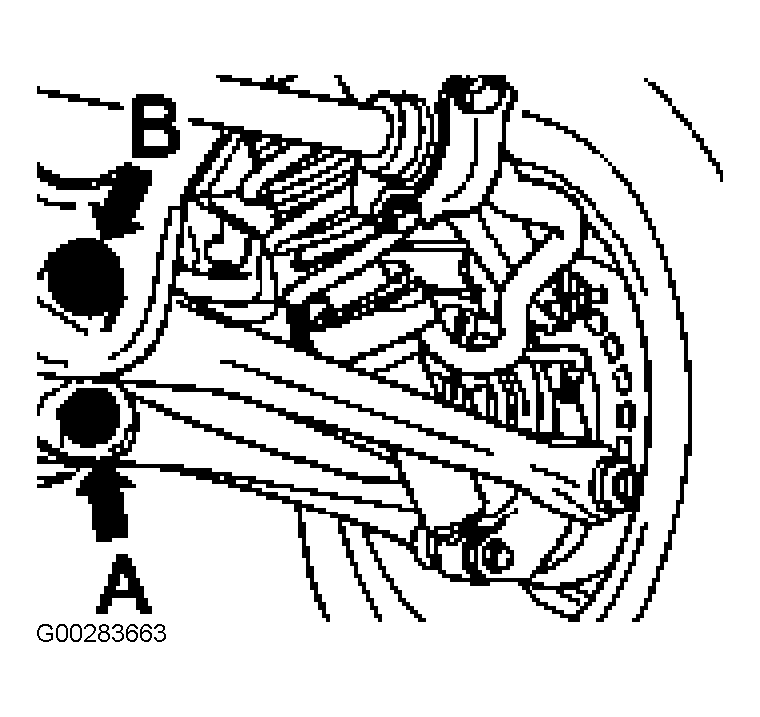

  2. Measure rear toe-in. If toe-in needs adjustment, loosen rear toe eccentric nut. See Figure .

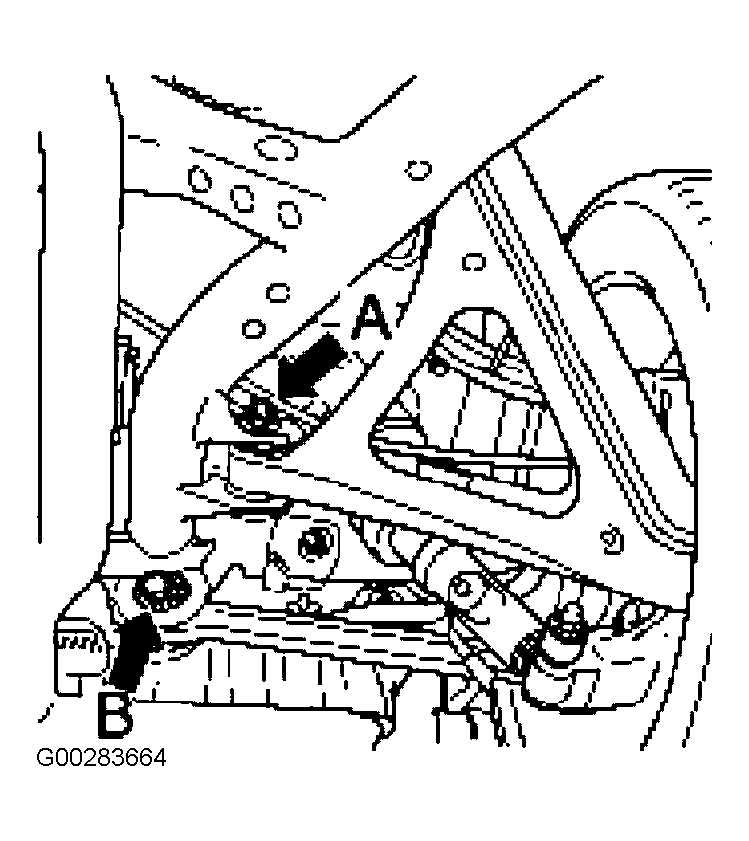

  3. After loosening nut, turn toe eccentric to adjust rear toe-in. See Figure .
  4. Tighten eccentric nut to specification. See TORQUE SPECIFICATIONS  . If rear toe-in needed adjustment, recalibrate steering angle sensor. See INITIALIZING & CALIBRATING STEERING ANGLE SENSOR  .
