Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

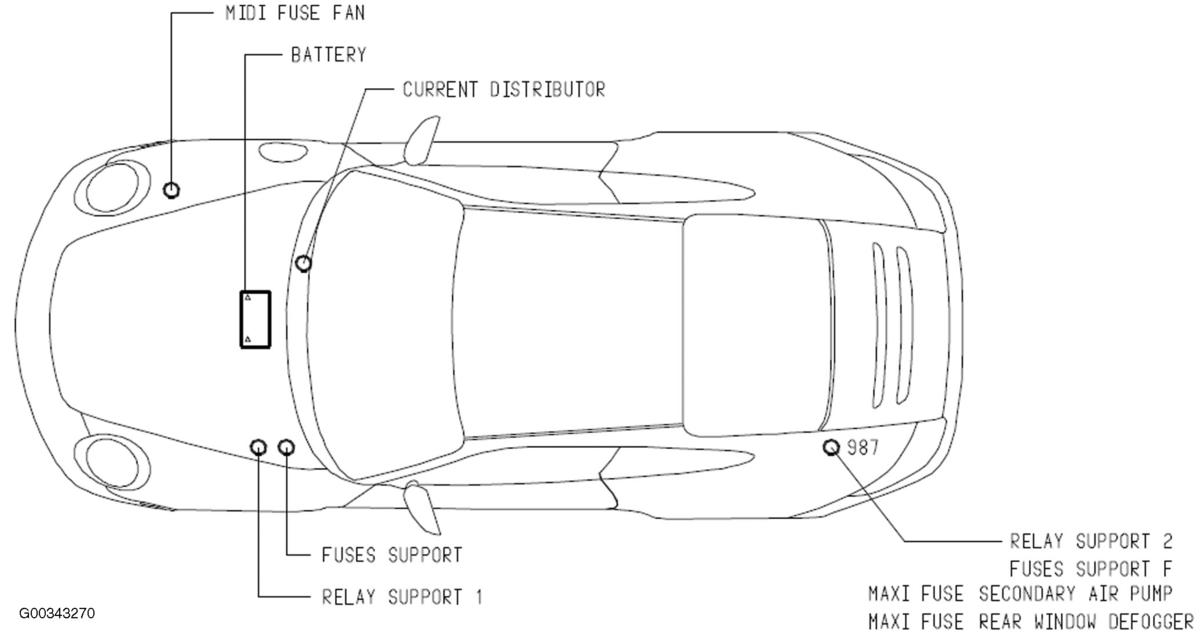

Fuses Support Under left side of dash, at kick panel. See Figure.
Maxi Fuse Rear Window Defogger Left side of engine compartment, on fuses support. See Figure.
Maxi Fuse Secondary Air Pump Left side of engine compartment, on fuses support. See Figure.

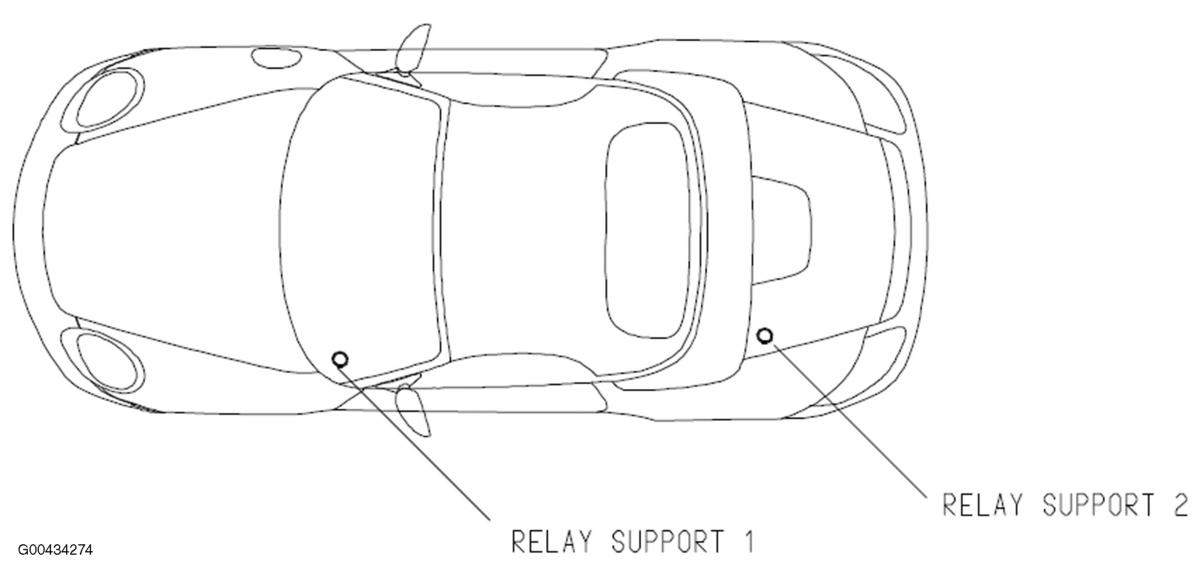

Relay Support 1 Under left side of dash, in footwell. See Figure.
Relay Support 2 On left side of rear luggage compartment. See Figure.
