Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

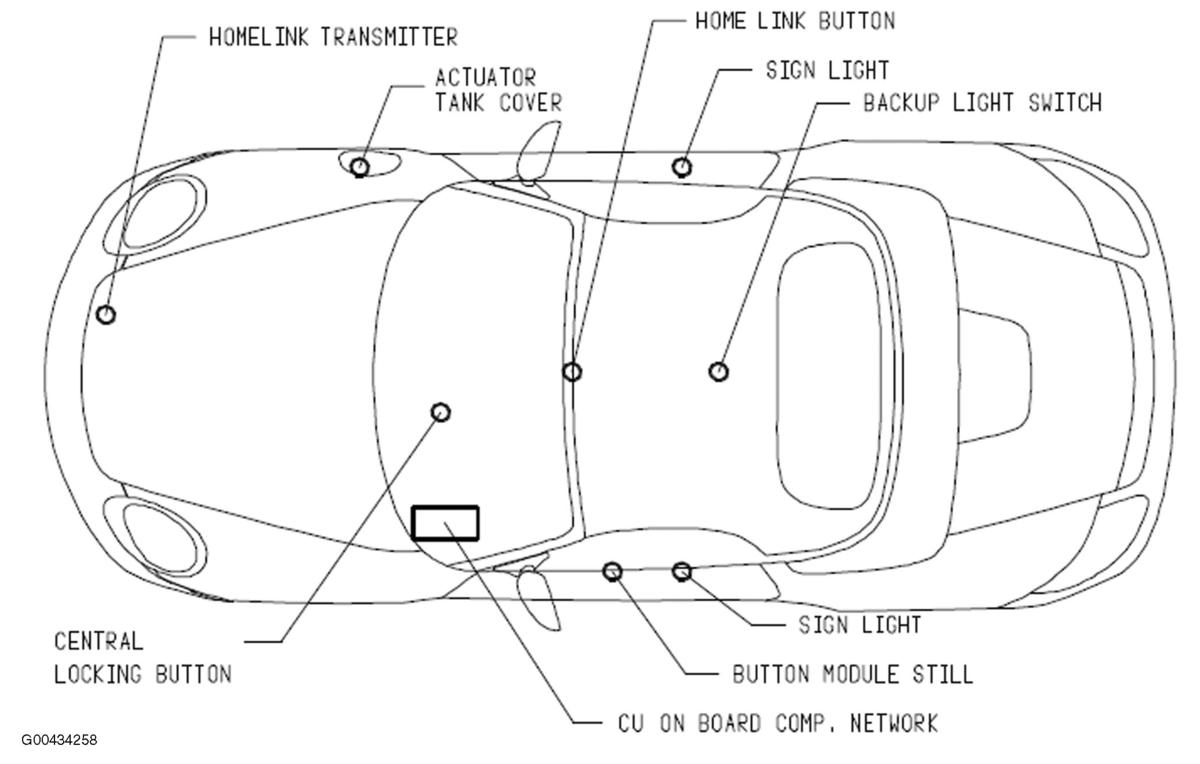

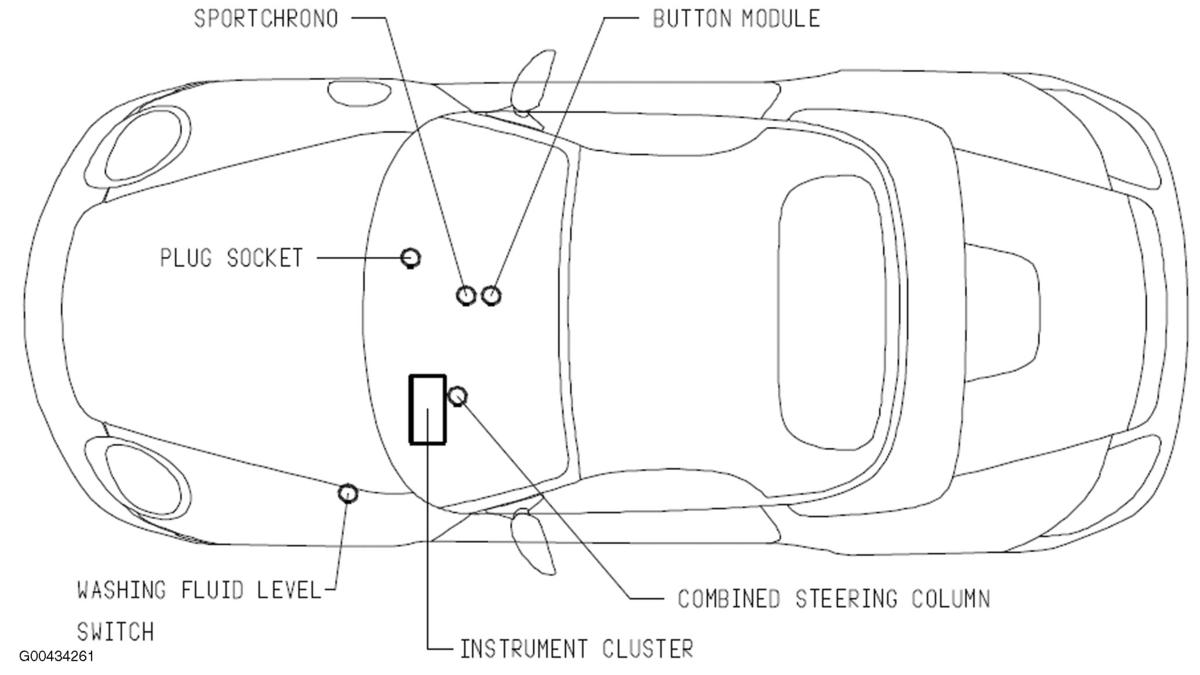

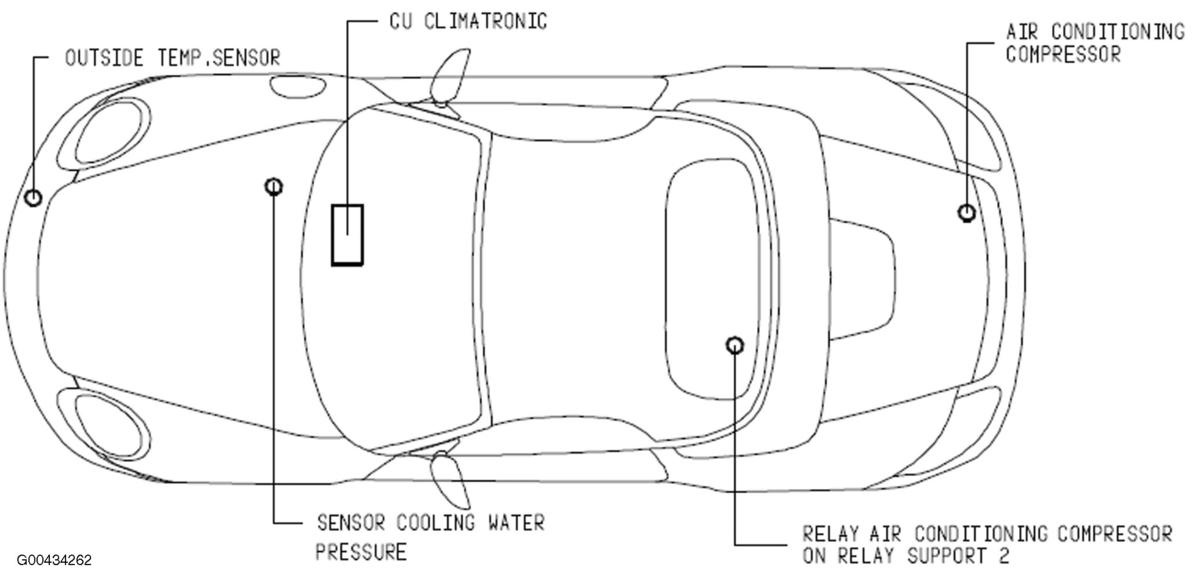

Fig 1: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 3: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 4: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 5: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 6: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 7: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 8: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 9: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 10: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 11: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 12: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 13: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 14: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 15: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 16: Vehicle Overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

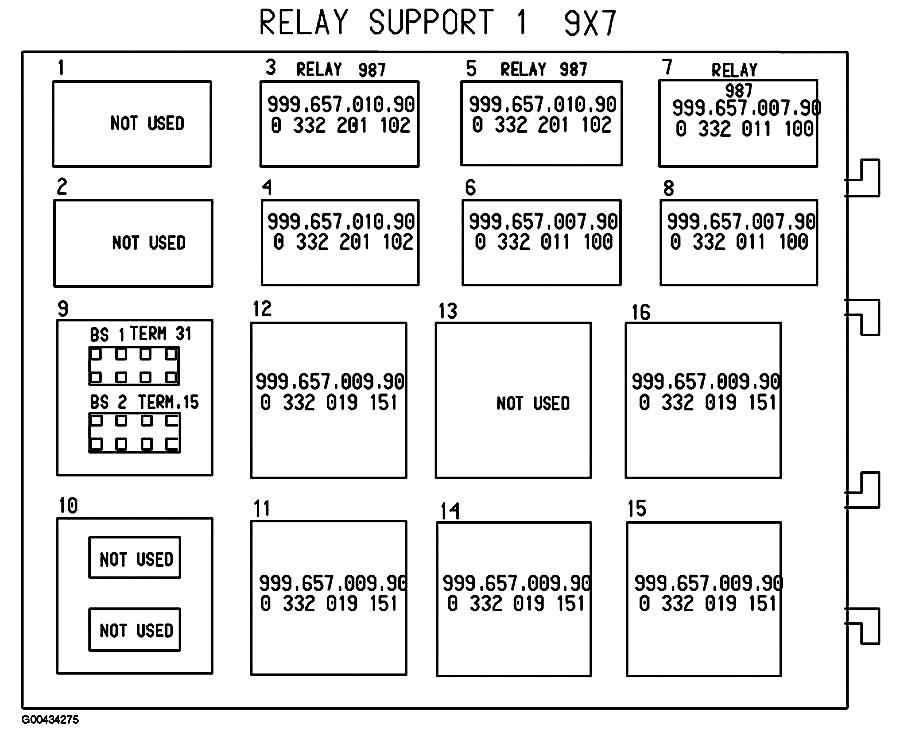

Fig 17: Relay Support No. 1

Courtesy of PORSCHE OF NORTH AMERICA, INC.

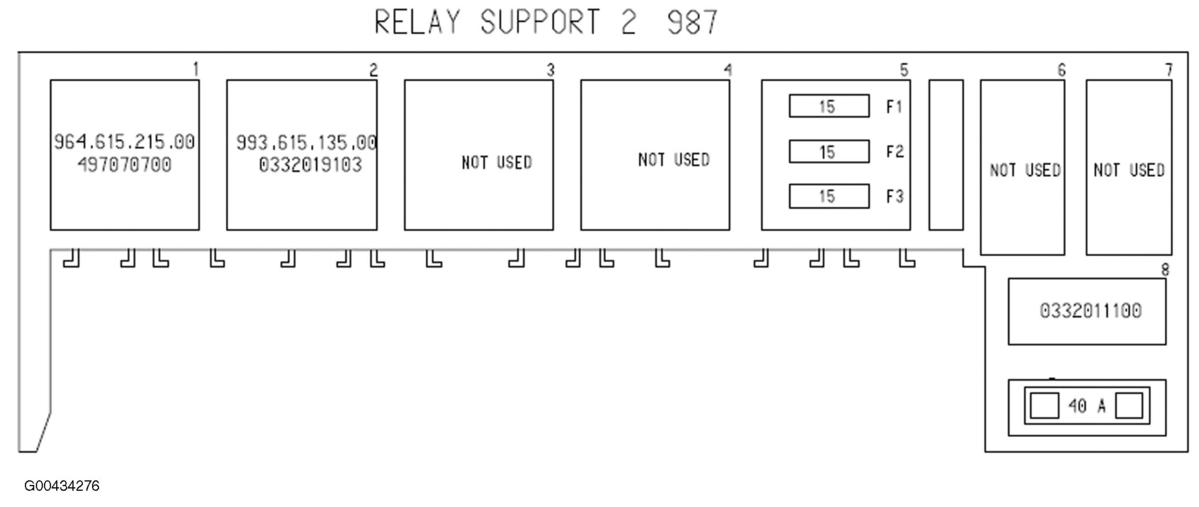

Fig 18: Relay Support No. 2

Courtesy of PORSCHE OF NORTH AMERICA, INC.
