Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

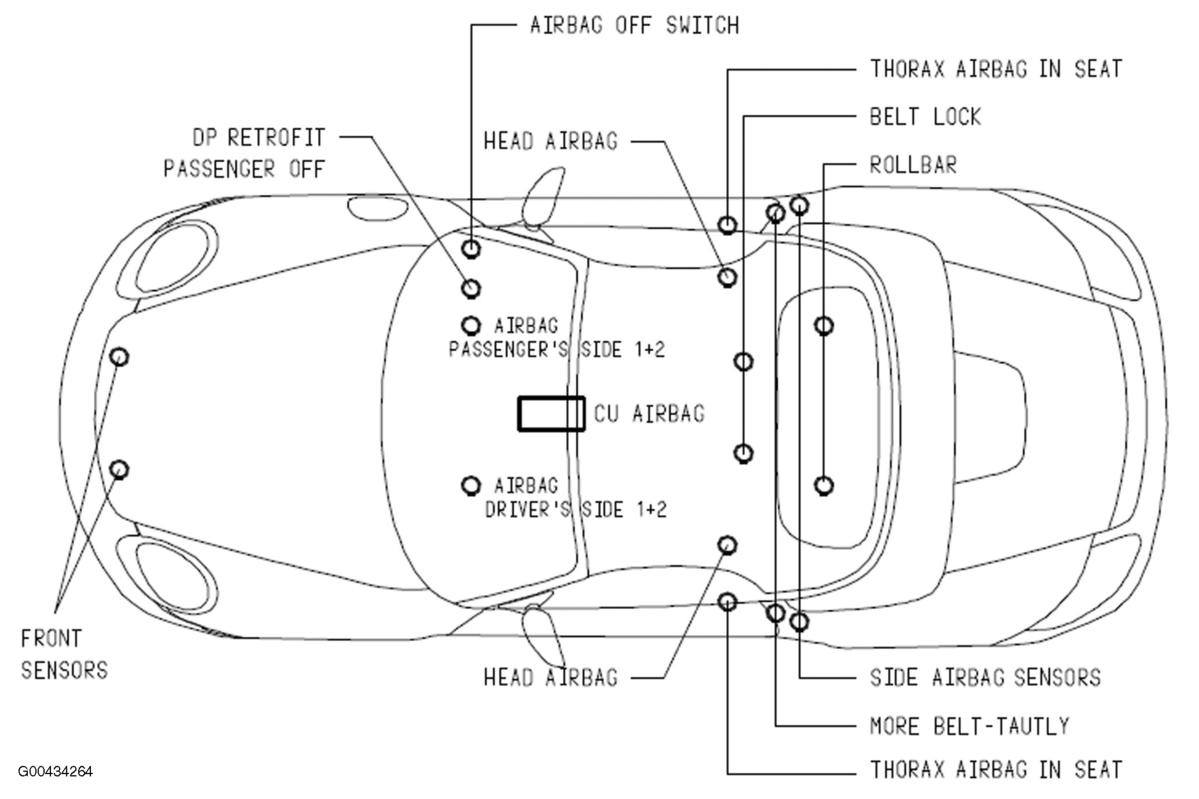

| CU Airbag | Under center console. See Figure. |

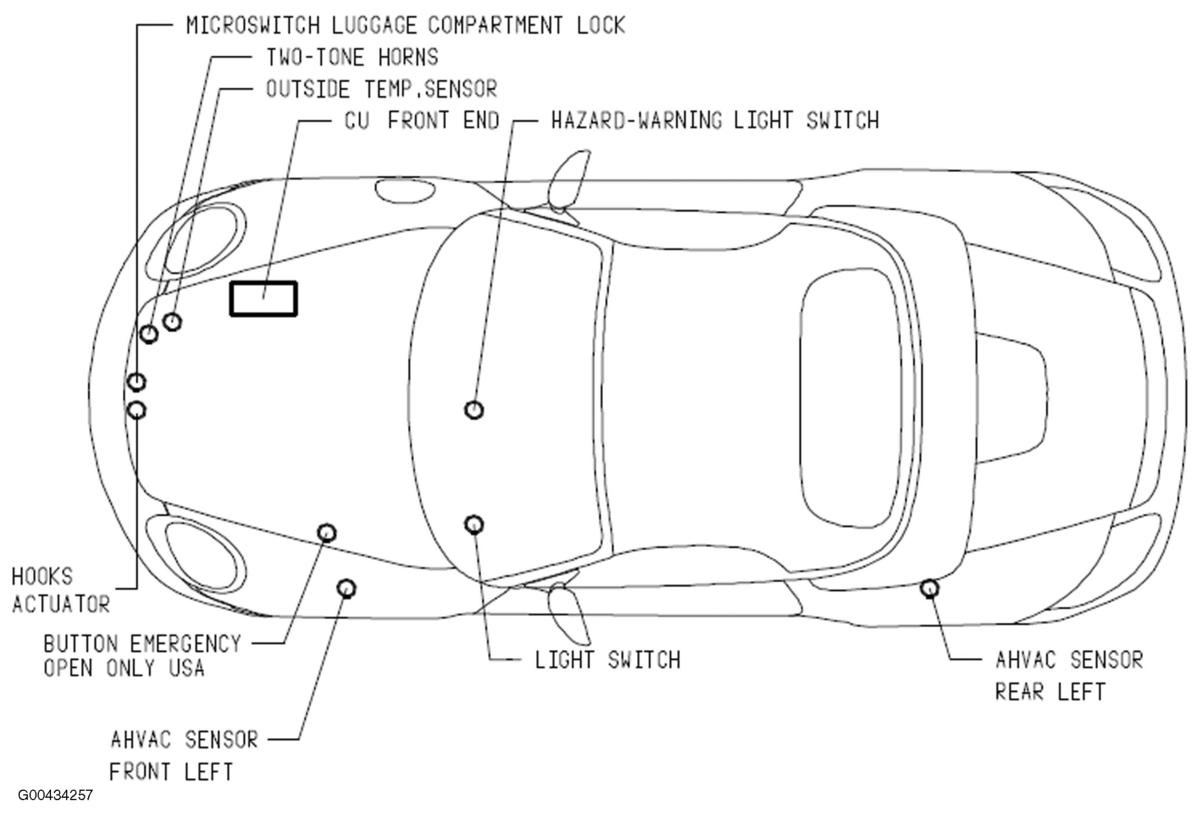

| CU Front End | At right side of front luggage compartment. See Figure. |
| CU On Board Comp. Network | Under left side of dash. See Figure. |

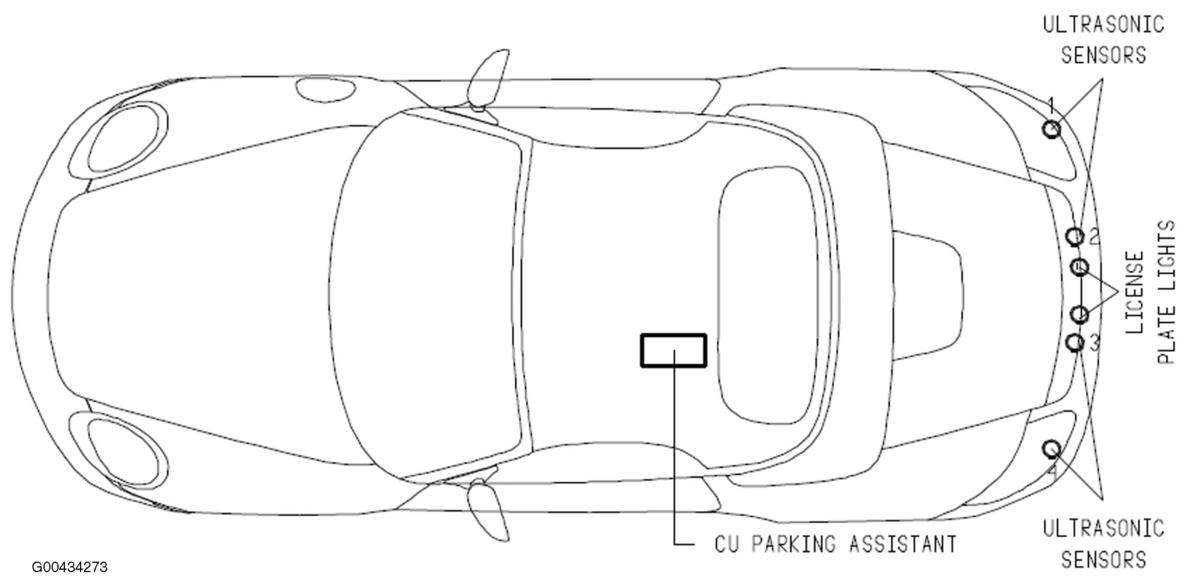

| CU Parking Assistant | Under left seat. See Figure. |

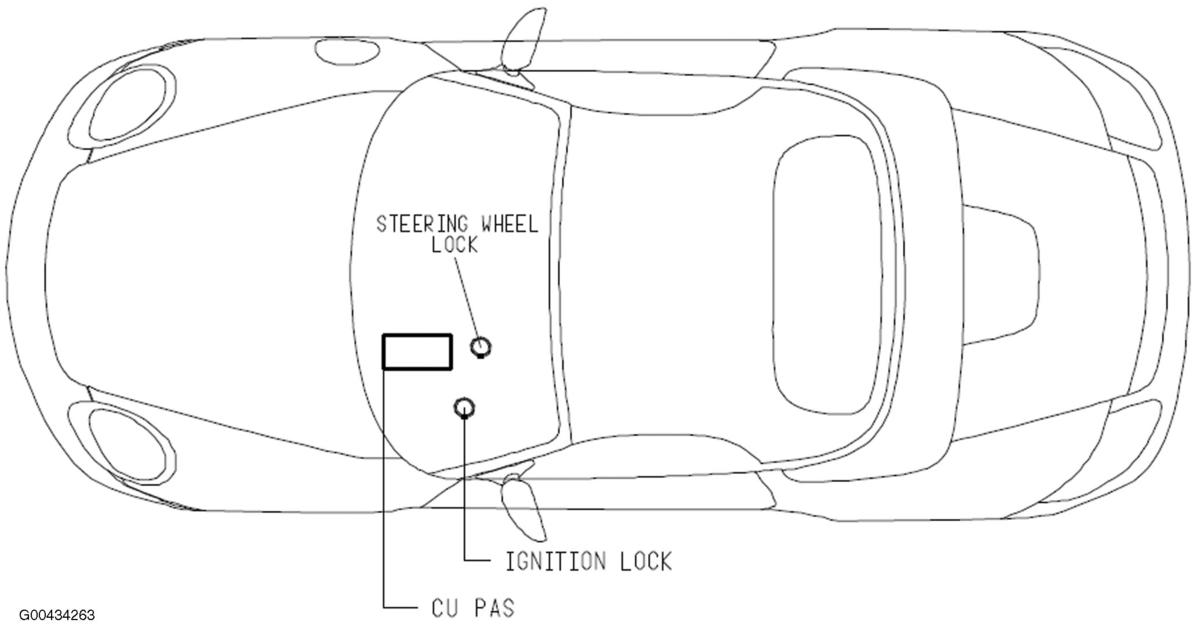

| CU PAS | Behind left side of dash. See Figure. |

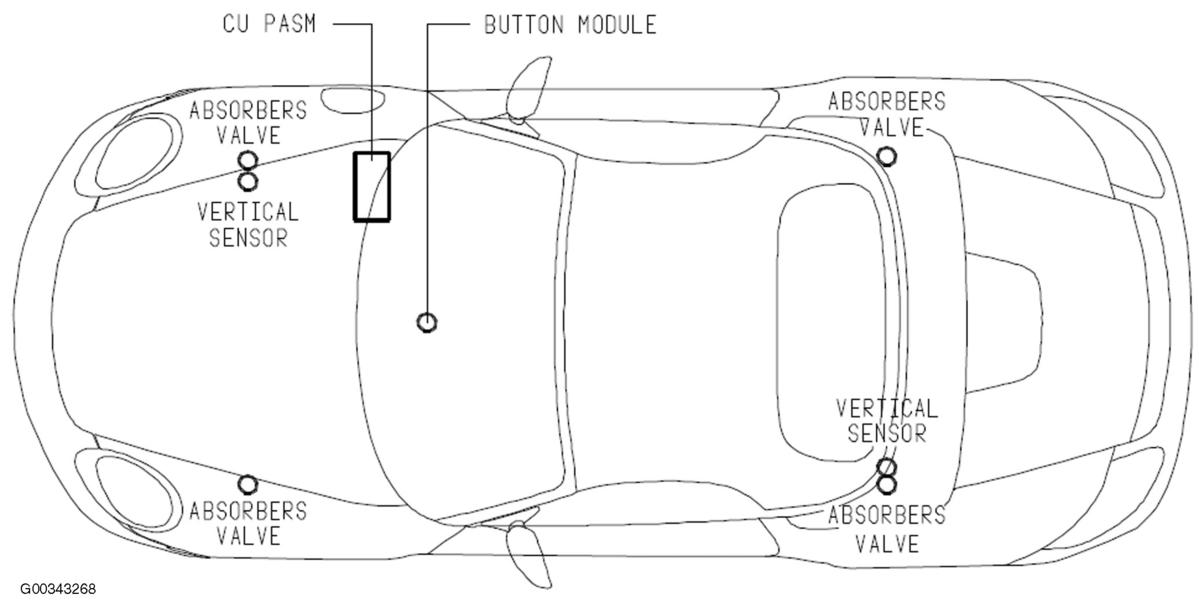

| CU PASM (Damptronic Control Unit) | At right kick panel. See Figure. |

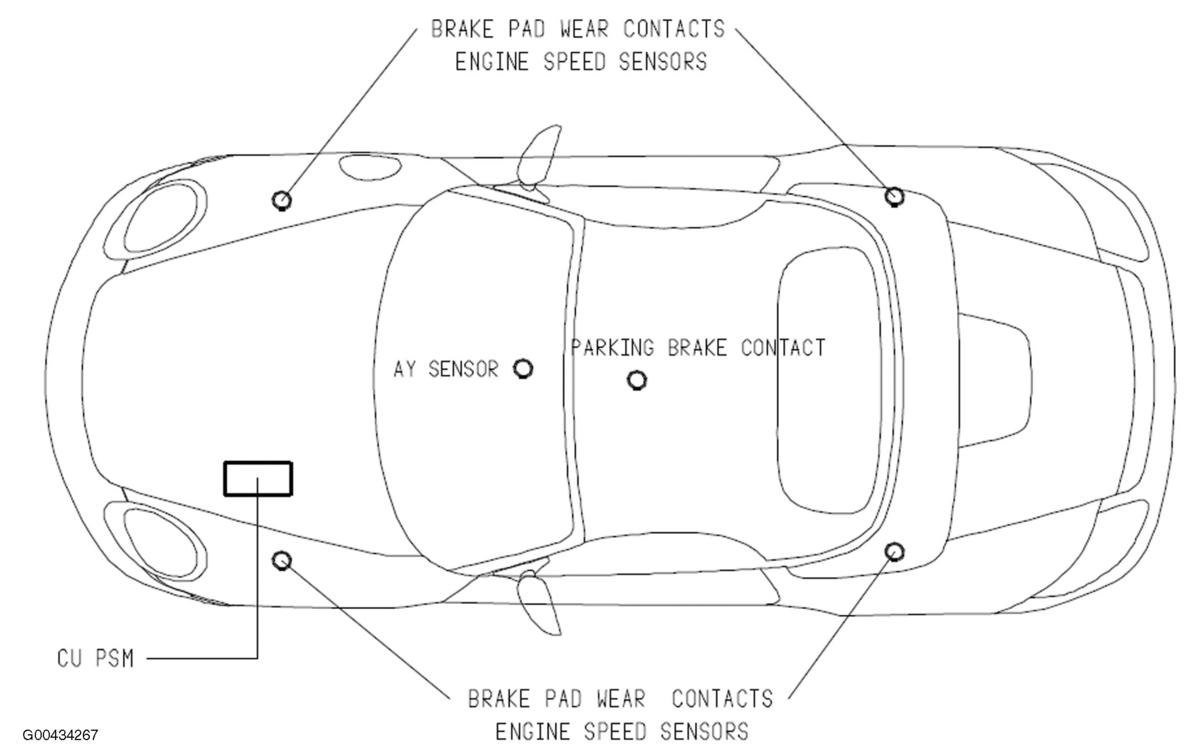

| CU PSM (Porsche Stability Management Control Unit) | Left side of front luggage compartment. See Figure. |

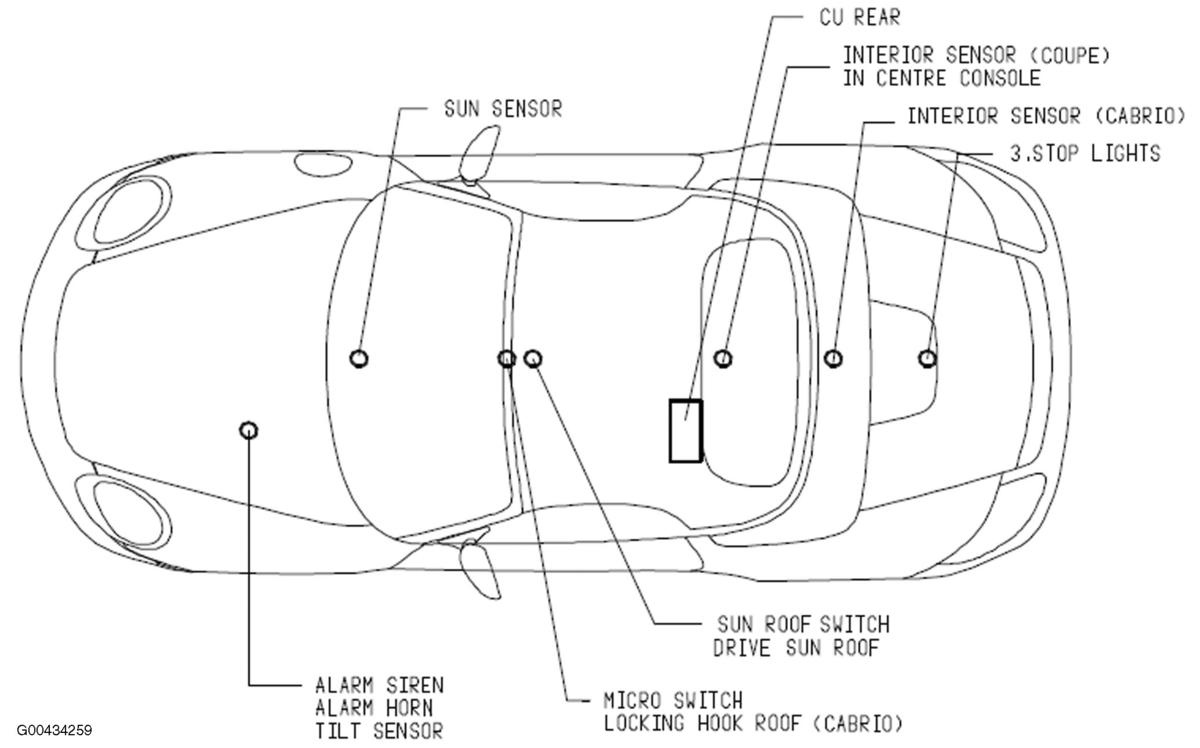

| CU Rear | Under left seat. See Figure. |
| Current Distributor | Behind right side of dash. See Figure. |

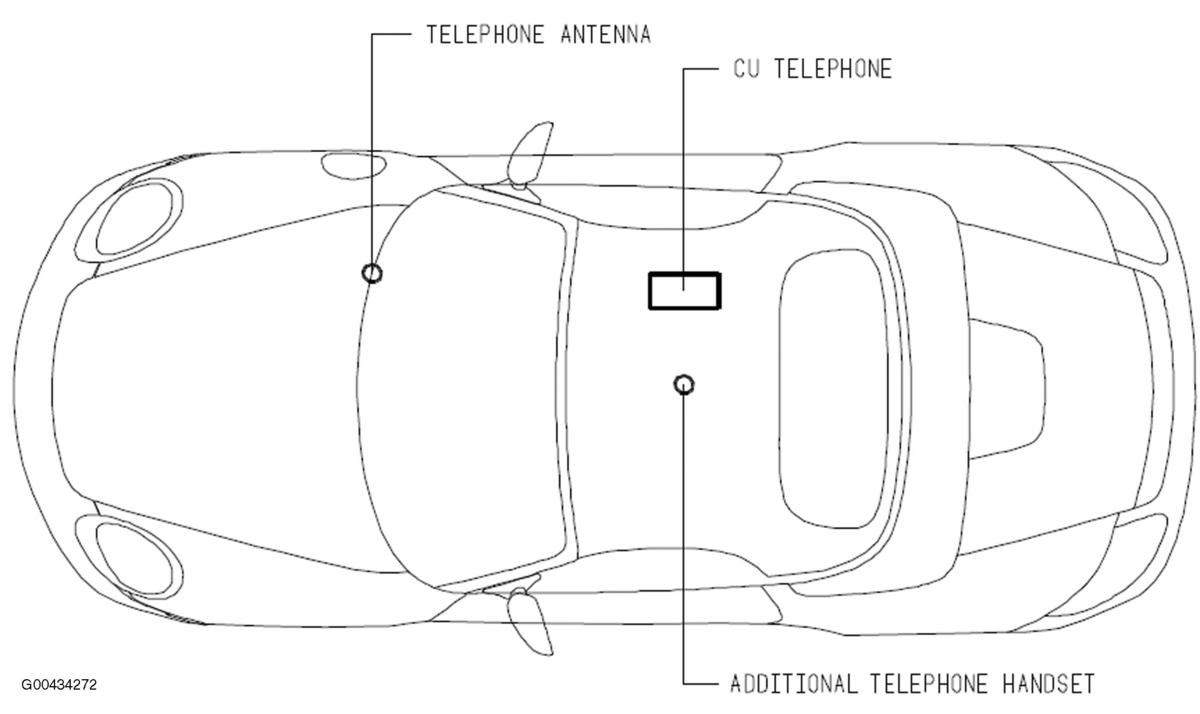

| CU Telephone | Under right seat. See Figure. |

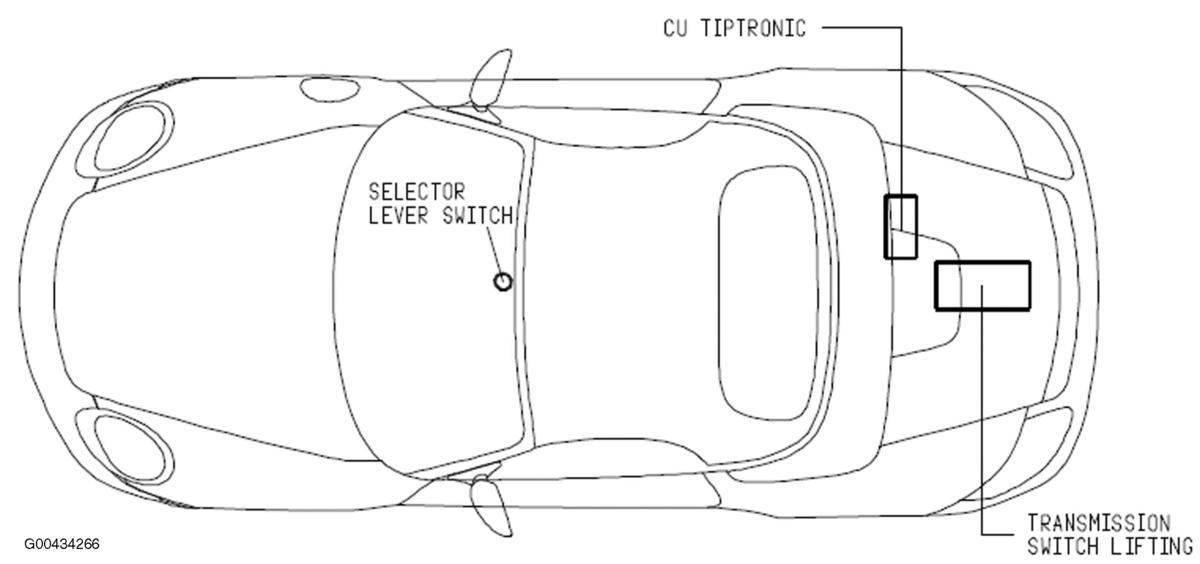

| CU Tiptronic | Right rear of engine compartment. See Figure. |

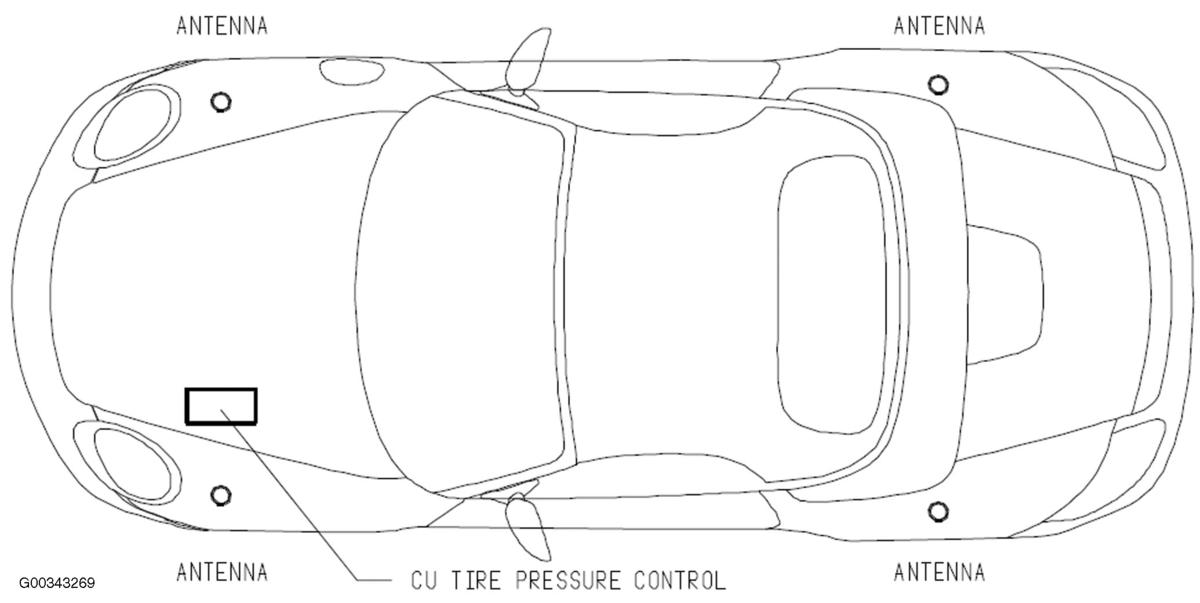

| CU Tire Pressure Control | Left side of front luggage compartment. See Figure. |
| Diversity Unit (Left/Right) | On respective "A" pillar. |
| Electric Fuel Pump Control Unit | In front luggage compartment. |
| Gateway Control Unit | Left kick panel. |
| MFI-DI Control Unit | On left side of rear luggage compartment. |
| PAS (Driver Recognition) Control Unit | Under dash, left of steering column. |
| Rear Window Module | Left front of engine compartment. See Figure. |
| Seat Memory Control Unit (Left/Right) | Under respective left/right seat. |
| Transmission Control Unit | On gear box. |
