Removing AWS control unit: Notes

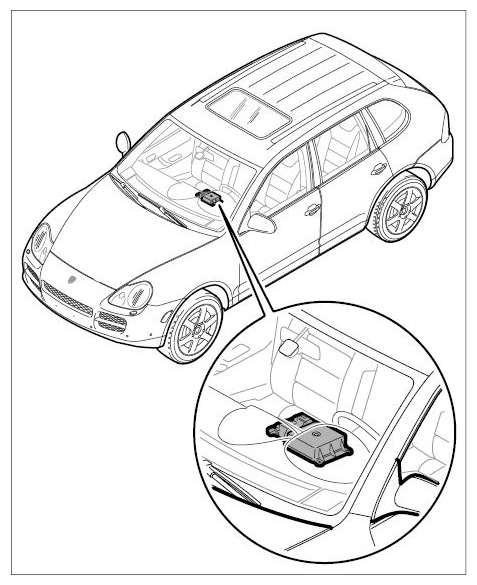

Fig 1: Identifying AWS Control Unit
G09412961Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Switch off ignition and remove ignition key.
  2. Unscrew the three fastening nuts -1-  on the cover of the AWS control unit and remove the cover -2-  .

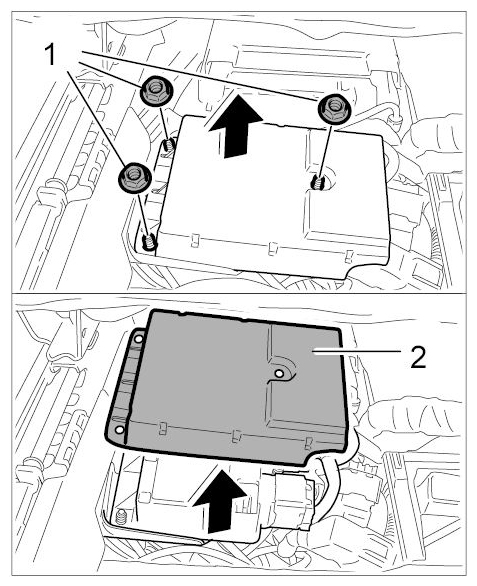

    Fig 2: Removing AWS Control Unit Cover
    G09412962Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove AWS control unit from support, release the two electric connectors -a-  and pull them off the control unit.

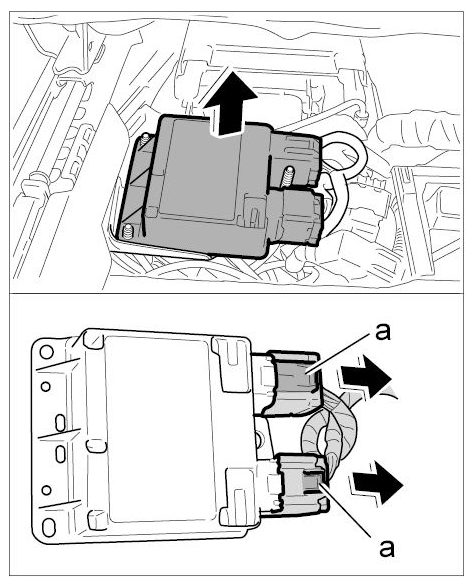

    Fig 3: Unplugging Electric Connectors
    G09412963Courtesy of PORSCHE CARS NORTH AMERICA, INC.
