Installing Support For AWS Control Unit

Information

This is only necessary if the telephone, Tiptronic and transfer box control unit has been removed and re-installed.

When inserting the support, ensure that the two sheetmetal lugs a  engage in the slots in the holder.

1. Insert the support for the AWS control unit -Arrow-  .

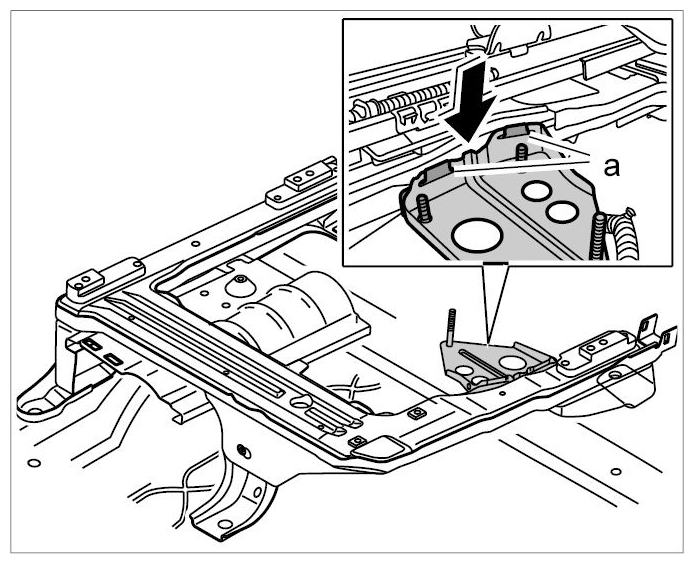

Fig 1: Installing Support For AWS Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
