WM 695719 Removing And Installing Switch For Airbag (All Models)
>>
Removing Switch For Airbag
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Removing Switch For Airbag
Information
Switch off ignition and remove ignition key.
Fig 1: Overview Of Airbag Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in the retainer springs on the switch
-Arrows A-
and pull switch out from the mounting point.

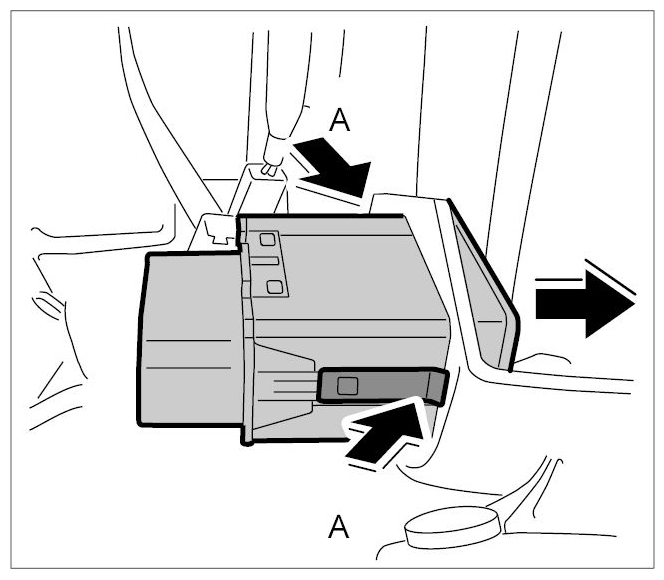

Fig 2: Removing Retainer Springs Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
