Mode 6 Data 2009

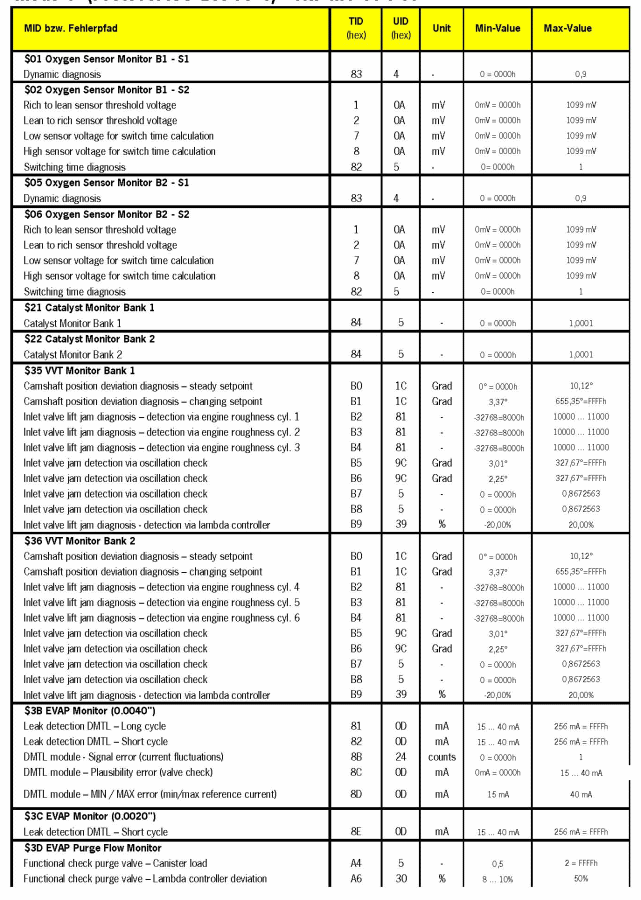

Fig 1: 911 (997) & Boxster (987) - 2009 (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

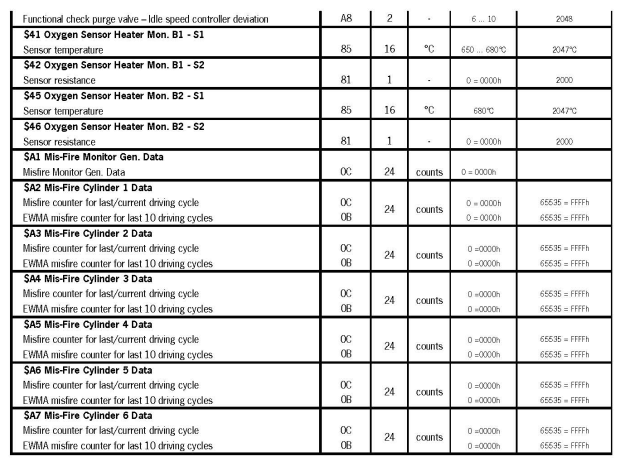

Fig 2: 911 (997) & Boxster (987) - 2009 (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
