Mode 6 Data 2013-14

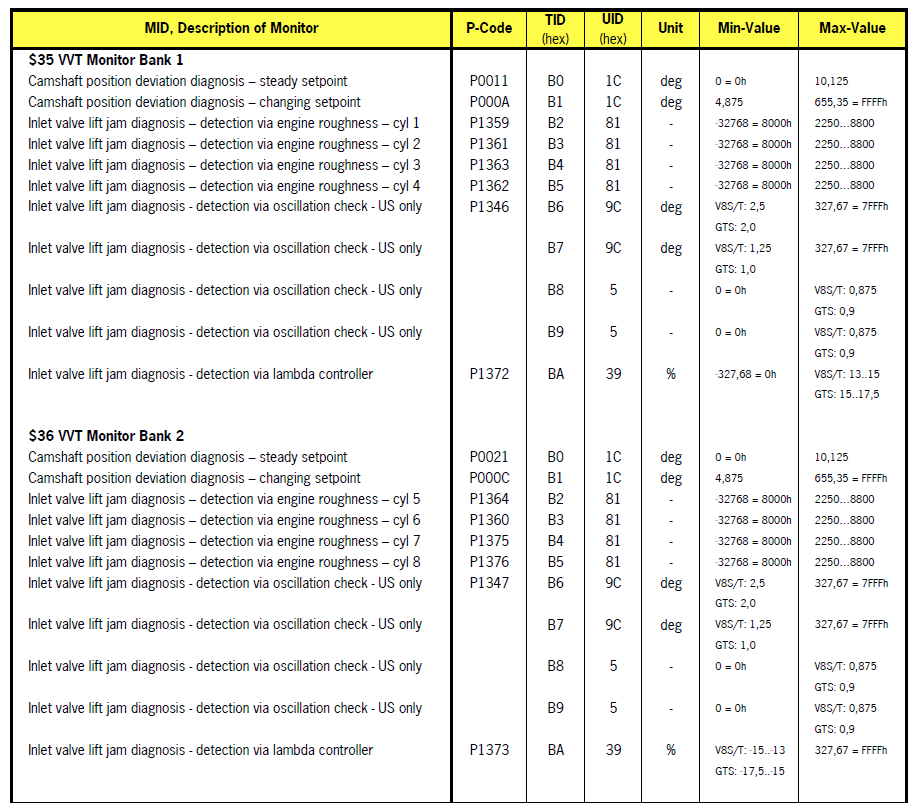

Fig 1: Cayenne (92A) V8 - 2014-15 (1 Of 4)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

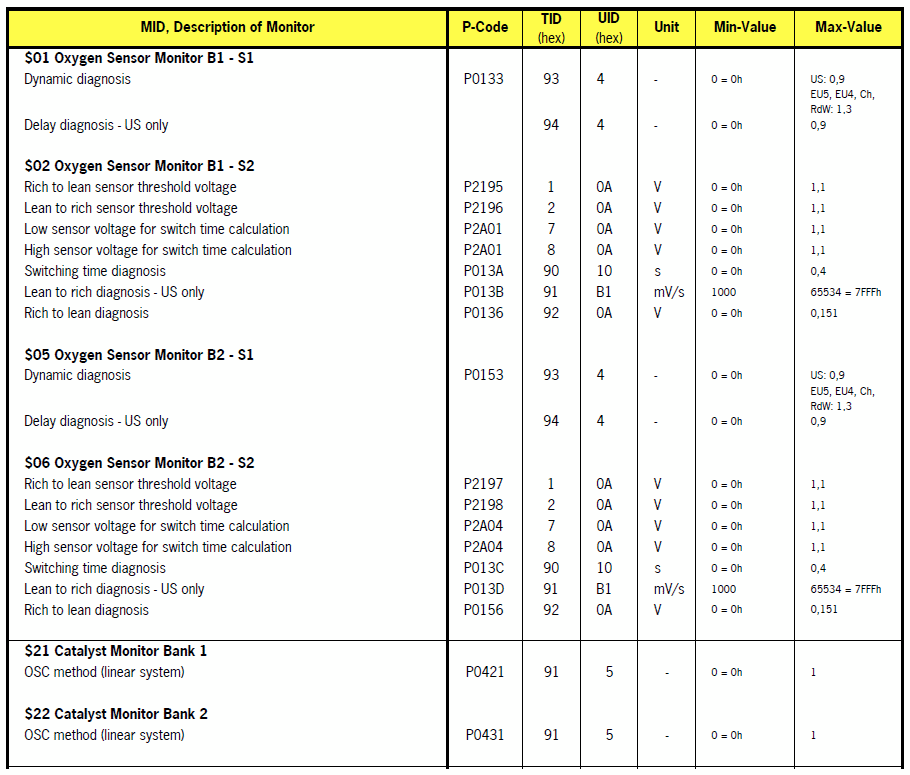

Fig 2: Cayenne (92A) V8 - 2014-15 (2 Of 4)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

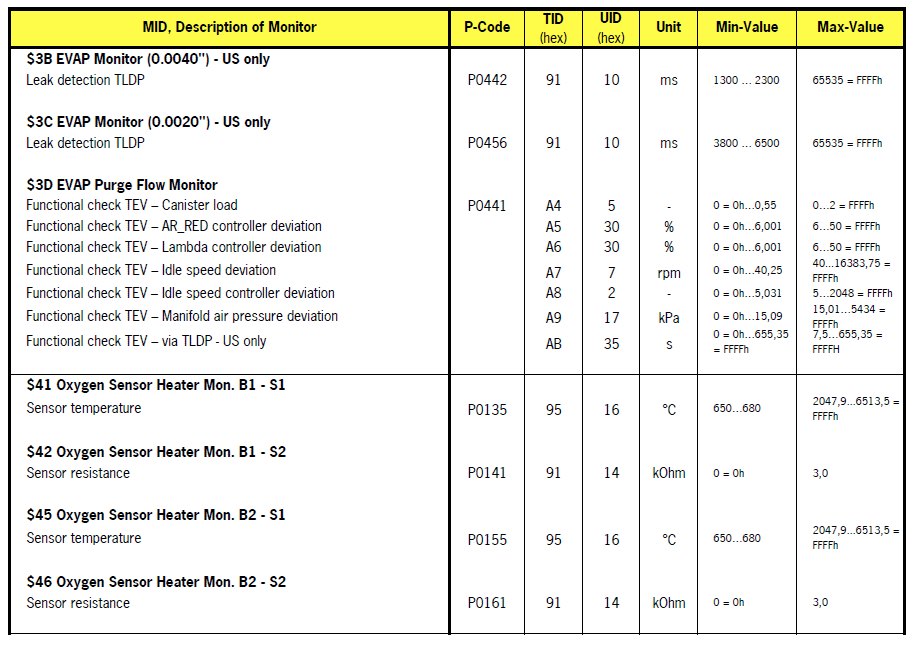

Fig 3: Cayenne (92A) V8 - 2014-15 (3 Of 4)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fig 4: Cayenne (92A) V8 - 2014-15 (4 Of 4)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
