Installing Pressure Sensor Mat
- Position pressure sensor mat.

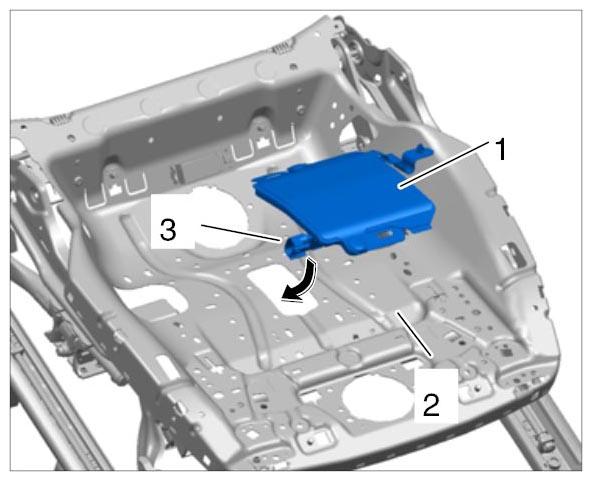

- 1.1. Guide the connector -3-
and line through the opening on the seat frame -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

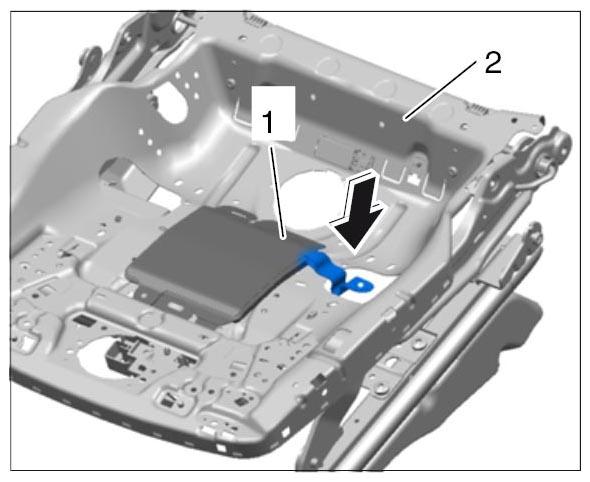

- 1.2. Guide the tab on the pressure sensor mat -1-
through the seat frame -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

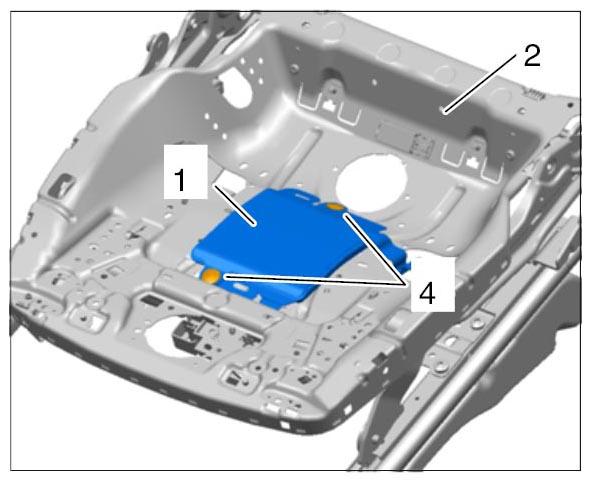

- 1.3. Align the pressure sensor mat -1-
on the seat frame -2-
and secure it to the seat frame with clips -4-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Secure the pressure line.

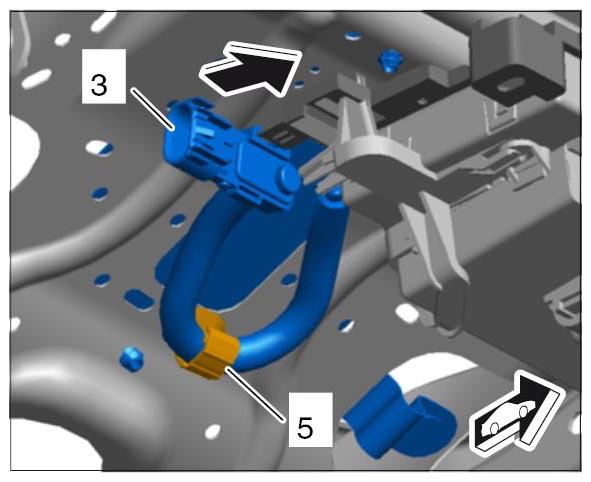

- 2.1. Route the pressure line -3-
as shown and engage the retaining clip -5-
in the seat frame.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Install padding for seat. → REPLACING PADDING FOR FRONT BACKREST
- section on "Installing"

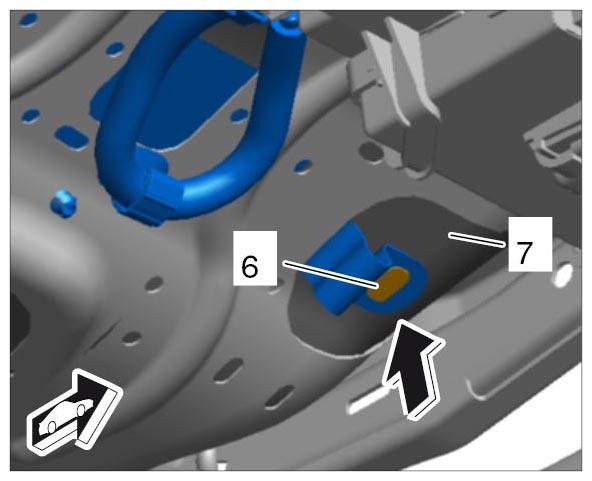

- Engage the retaining clip -6-
from below through the tab on the pressure sensor mat into the padding -7-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Check that the pressure line is positioned without tension and is not twisted.
- Push on electric plug connection.
