Removing Pressure Sensor Mat

Information

If occupant detection components (installed for country equipment USA/Canada/Mexico) must be replaced, the repair kit comprising padding, occupant detection control unit and pressure sensor mat Must  always Be Replaced As A Complete Unit  .

The spare parts are grouped in a repair kit (comprising padding -1-, occupant detection control unit -2- and pressure sensor mat -3-), which must always be replaced as a complete unit.

1. Padding
2. Occupant detection control unit
3. Pressure sensor mat

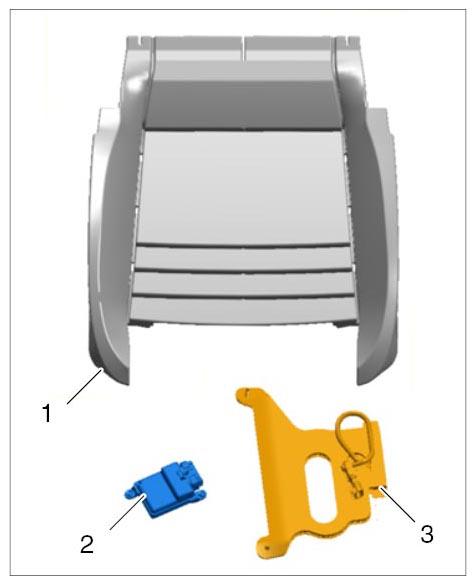

   Fig 1: Identifying Occupant Detection Control Unit And Pressure Sensor Mat

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A Mixed Installation  , e.g. "old" pressure sensor mat and "new" control unit, is Not Permitted  .

The padding, pressure sensor mat and occupant detection control unit are calibrated together by the manufacturer and must therefore only be replaced as a complete unit.

The occupant detection control unit does not  have to be coded.

1. The pressure sensor mat is removed in reverse order to installation.
