Removing Occupant Detection Control Unit

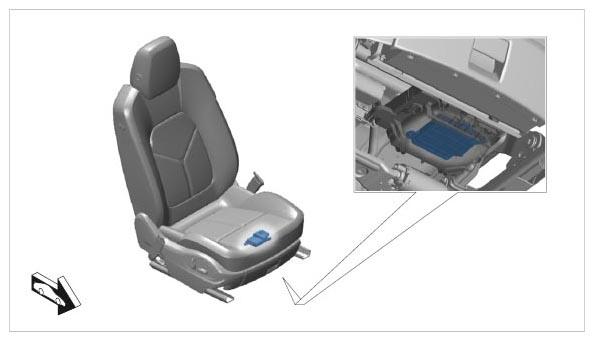

Fig 1: Identifying Occupant Detection Control Unit Installation Position
G09940588Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release electric plug connection -1-  (-arrow a-  ) and disconnect it -arrow-  .

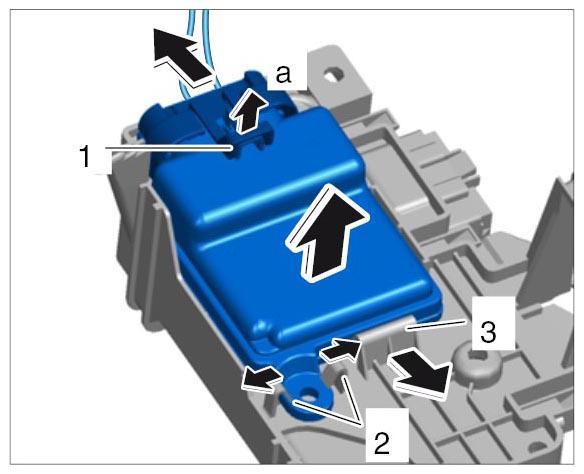

    Fig 2: Removing Occupant Detection Control Unit
    G09940589Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully press back retaining lugs -2 and 3-  (-arrows-  ) and remove the control unit -arrow-  .
  3. Remove padding for right seat. → LOOSENING COVER FOR FRONT SEAT - section on "Removing"
  4. Remove pressure sensor mat. → LOOSENING COVER FOR FRONT SEAT - section on "Removing"
