Installing front three-point belt

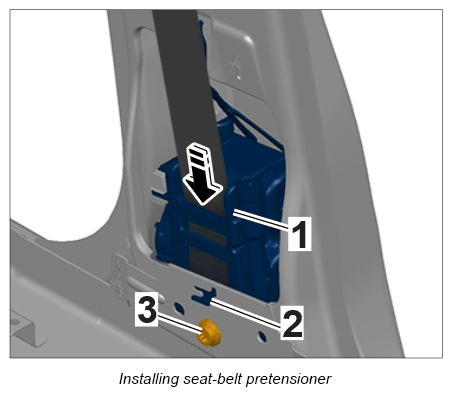

1. 1.1. Fit seat-belt pretensioner -1-  , making sure that the guide pin is fitted correctly -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. 1.2. Tighten fastening screw -3-  until secure Tightening torque 50 Nm (37 ft lb.)  .

   Information

   Always replace the fastening screws on the three-point seat belt. The micro-self-locking screws must not be treated (e.g. greased) or loosened and then screwed on again.

   Information

   Route electric lines outside of the belt roll-up area.

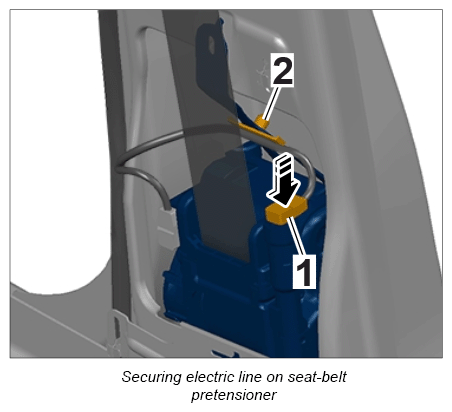

3. 1.3. Plug in electric plug connection -1-  and close the locking mechanism.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. 1.4. Secure electric line in the fixing clip -2-  .

Information

Once the fastening screw has been tightened, the belt lug must level out on its own in a vertical position or in the relevant support direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not twist the three-point belt during installation!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not twist the three-point belt during installation!

→ Only bend the spring plate up as far as required to allow you to push the seat belt mount off the mounting pin.

→ The spring plate must be touching the mounting pin during installation with preload.

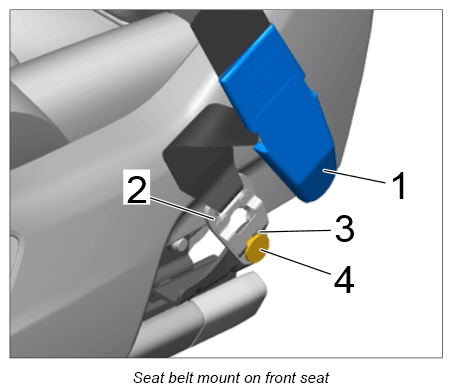

1. 4.1. Position seat belt mount -2-  on the retaining pin -4-  and pull upward until the retaining clip -3-  locks with an audible click.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. 4.2. Pull on the belt strap. The retaining clip -3-  must engage fully on the holder.
3. 4.3. Slide the cap -1-  over the seat belt mount -2-  and lock it. The label on the seat belt must be pushed into the cap when you slide the cover down.
