Technical values

TORQUE SPECIFICATION

Location	Description	Type	Basic value

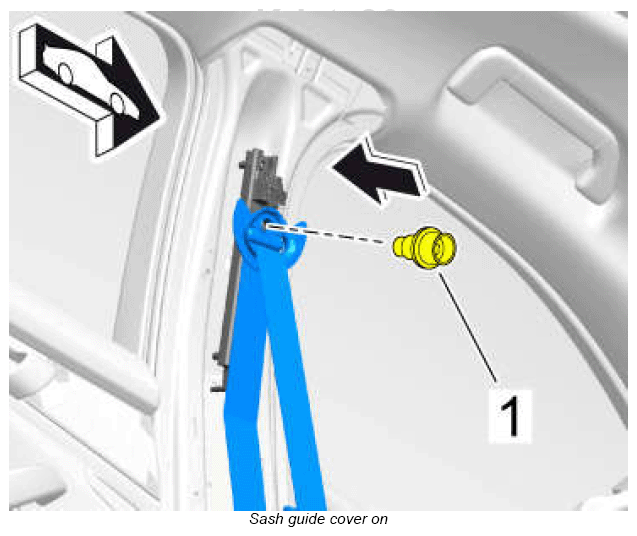

Fastening screw securing sash guide cover to adjustment fitting		Tightening torque	50 Nm (37 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

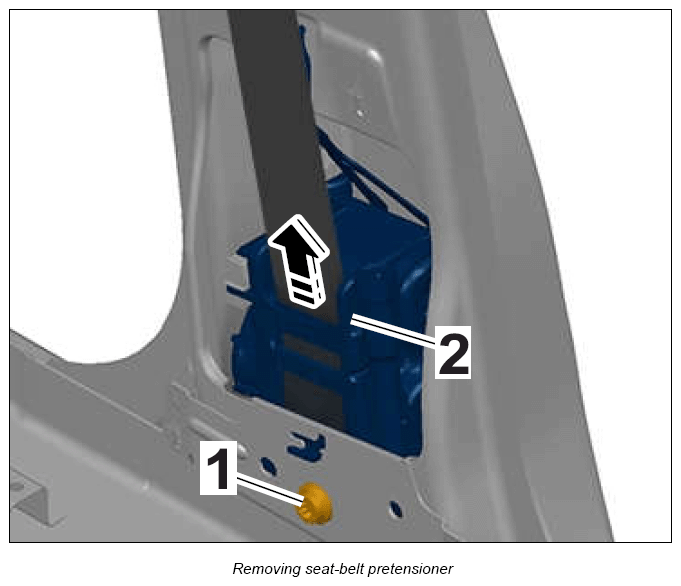

Fastening screw securing seat-belt pretensioner to B-pillar	Item 1	Tightening torque	50 Nm (37 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

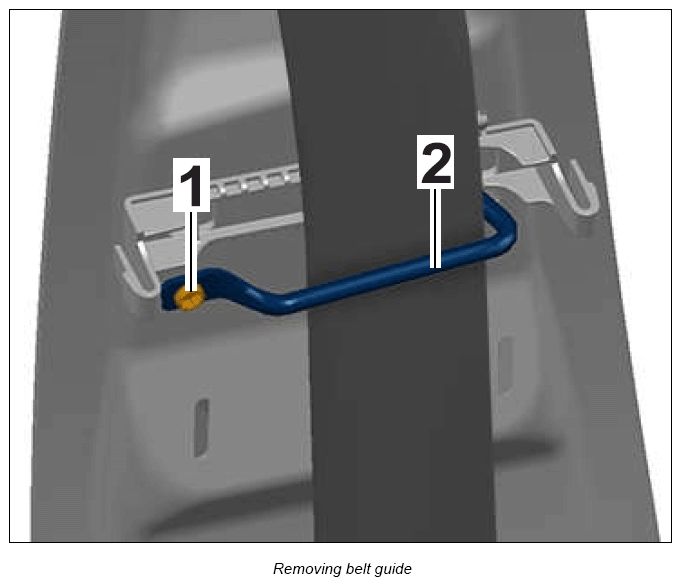

Fastening screw securing belt guide to B-pillar	Item 1	Tightening torque	4.5 Nm (3 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
