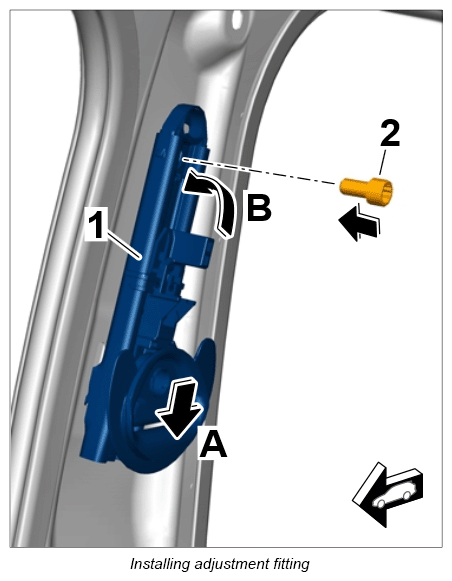

Installing adjustment fitting
- Engage adjustment fitting -1-
at the bottom -arrow A-
and fold it up towards the B-pillar -arrow B-
.
- Tighten fastening screw -2-
until secure Tightening torque 22 Nm (16 ft lb.)
.
Information
Always replace the fastening screws on the three-point seat belt. The micro-self-locking screws must not be treated (e.g. greased) or loosened and then screwed on again.

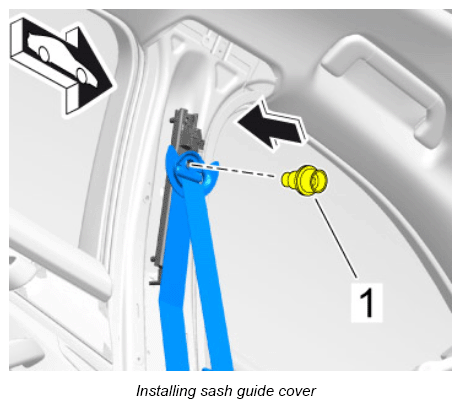

- Tightening fastening screw -1-
on sash guide cover at the adjustment fitting Tightening torque 50 Nm (37 ft lb.)
.
Information
Once the fastening screw has been tightened, the belt lug must level out on its own in a vertical position or in the relevant support direction.
