Removing adjustment fitting

Information

After any accident, the seat belt system must be checked systematically for signs of damage. If damage is found, the entire seat belt system must be replaced.

Information

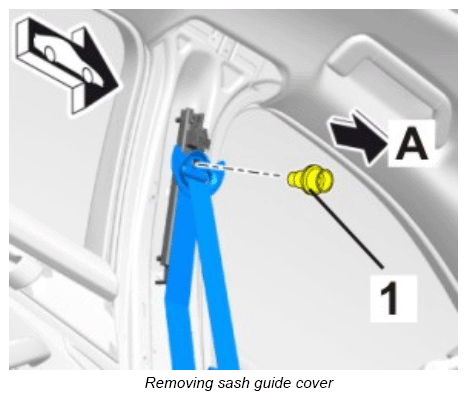

  1. Unscrew fastening screw -1-  on sash guide cover and remove sash guide cover -A-  .
    G12836114Courtesy of PORSCHE CARS NORTH AMERICA, INC.

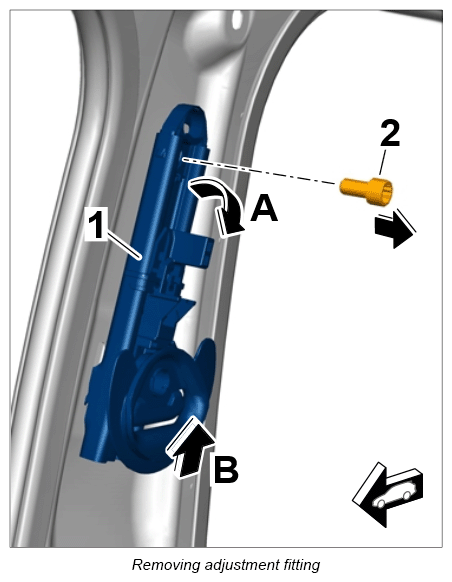

  2. Position adjustment fitting -1-  so that the fastening screw -2-  is accessible.
    G12836115Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew the fastening screw -2-  .
  4. Fold adjustment fitting inwards -arrow A-  and remove by pulling it upwards -arrow B-  .
