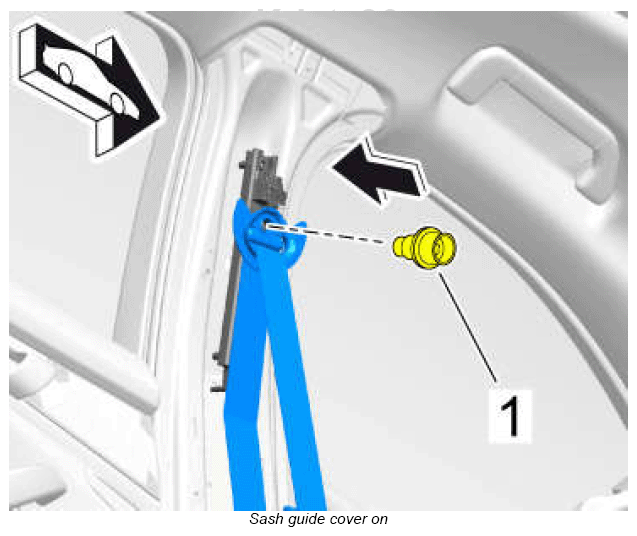

| Fastening screw securing sash guide cover to adjustment fitting |
|
Tightening torque |
50 Nm (37 ft lb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

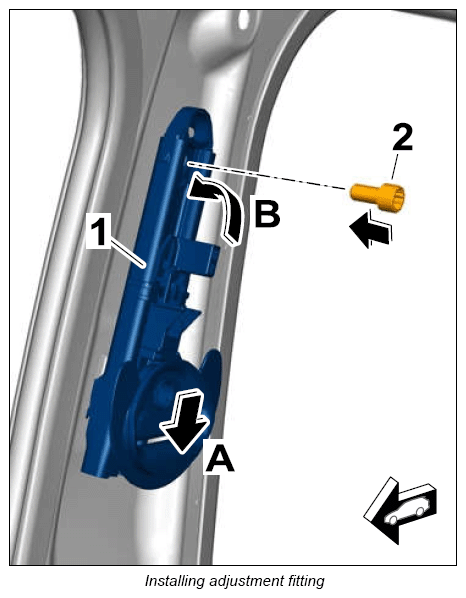

| Fastening screw securing adjustment fitting to B-pillar |
Item 2 |
Tightening torque |
22 Nm (16 ft lb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
