Removing occupant classification control unit

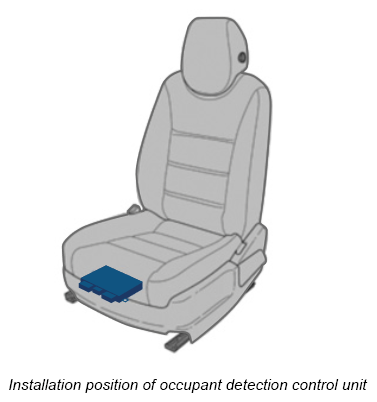

G12836174Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release electric plug connection on occupant classification control unit and disconnect it.

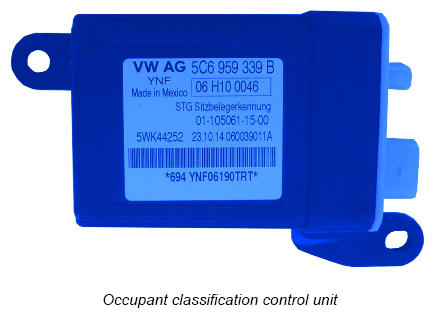

    G12836175Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip and remove occupant classification control unit.
  3. Remove padding for right seat. → 741055 REPLACING PADDING FOR FRONT SEAT
