Preliminary work
Information
If occupant classification components (installed for country equipment USA/Canada) must be replaced, the repair kit comprising padding with affixed mat for occupant classification system and occupant classification control unit must always be replaced as a complete unit .

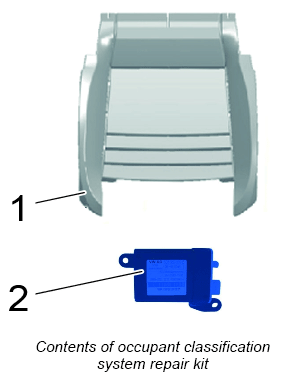

The spare parts are contained in a repair kit (comprising padding with affixed mat for occupant classification system -1- and occupant classification control unit -2-), which must always be replaced as a complete unit .
- -1- Padding with affixed mat for occupant classification system
- -2- Occupant classification control unit
A mixed installation , e.g. "old" padding and "new" control unit, is not permitted .
The padding with affixed mat for occupant classification system and the occupant classification control unit are calibrated together by the manufacturer and must therefore only be replaced as a complete unit.
The occupant classification control unit must not be coded.
The mat for the occupant classification system must not be removed from the foam part.
Information
The connector of the occupant detection control unit must be inserted straight as otherwise the seal will be damaged. The seating of the seal must then be checked.
- Disconnect the battery. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
- Remove right front seat. → 720119 REMOVING AND INSTALLING FRONT SEAT
- Remove control unit for memory seat adjustment. → 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT
