Preliminary work

Information

If occupant classification components (installed for country equipment USA/Canada) must be replaced, the repair kit comprising padding with affixed mat for occupant classification system and occupant classification control unit must  always be replaced as a complete unit  .

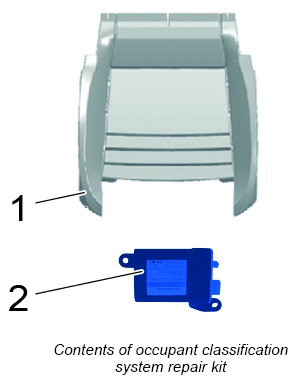

The spare parts are contained in a repair kit (comprising padding with affixed mat for occupant classification system -1- and occupant classification control unit -2-), which must always be replaced as a complete unit  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. -1-  Padding with affixed mat for occupant classification system
2. -2-  Occupant classification control unit

A mixed installation  , e.g. "old" padding and "new" control unit, is not permitted  .

The padding with affixed mat for occupant classification system and the occupant classification control unit are calibrated together by the manufacturer and must therefore only be replaced as a complete unit.

The occupant classification control unit must not  be coded.

The mat  for the occupant classification system must not  be removed  from the foam part.

1. Disconnect the battery. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
2. Remove right front seat. → 720119 REMOVING AND INSTALLING FRONT SEAT
3. Remove control unit for memory seat adjustment. → 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT
