Fast Idle Cut-Off (Automatic Transmission)

NOTE: This test requires special Renault tester B. Vi. 454-06.

Turn switch C1 to position "A" (automatic) and switch C2 to position "4" (computer unit connected). Connect special tester to vehicle and drive car at about 25 MPH. Green warning lamp should go out. Release accelerator pedal and allow vehicle to decelerate. When vehicle speed reaches 15 MPH, the warning light should come on.

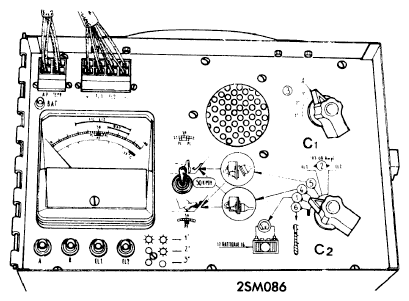

Fig 1: Special Tester B. Vi.454-06
G09309438Courtesy of AMERICAN MOTORS/RENAULT CORP.
