Exhaust Emissions System - EVAP: Maintenance

At regular intervals system should be checked and foam filler located at atmospheric intake of charcoal canister should be cleaned.

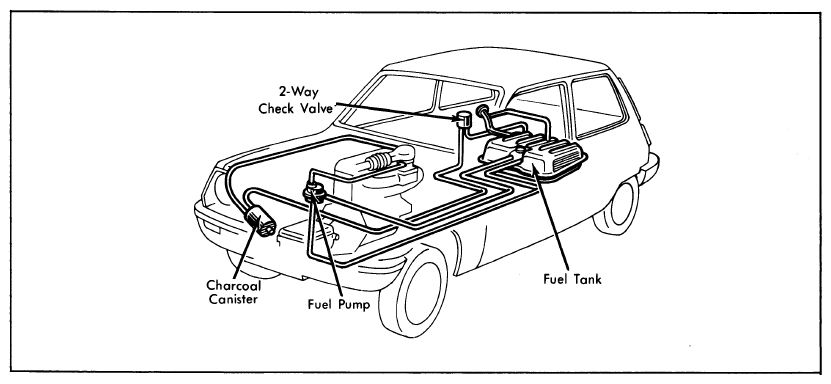

Fig 1: Renault R-5 Fuel Evaporation System (Typical)

Courtesy of AMERICAN MOTORS/RENAULT CORP.
