Description & Operation: Notes

California Le Car models use a feedback carburetor system to achieve good fuel economy and reduce emissions. The system includes a modified Weber 2-Bbl. carburetor, a vacuum solenoid regulator, electronic control unit, oxygen sensor, and sensor replacement reminder counter.

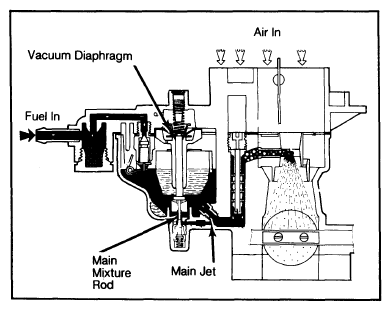

Fig 1: Le Car Feedback Carburetor Main Jet
G09316285Courtesy of AMERICAN MOTORS/RENAULT CORP.
