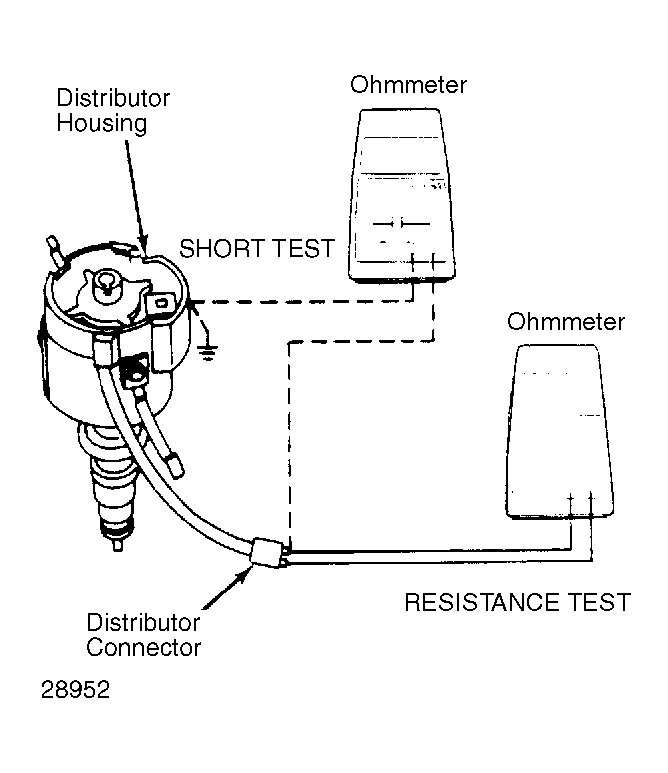

Pick-Up Coil Short Test
Using an ohmmeter, connect leads to engine ground and either terminal of harness connector leading to distributor. An infinity reading should exist. If not, replace magnetic pick-up coil and harness assembly. See Figure.
Using an ohmmeter, connect leads to engine ground and either terminal of harness connector leading to distributor. An infinity reading should exist. If not, replace magnetic pick-up coil and harness assembly. See Figure.
