Electrical Circuit Test

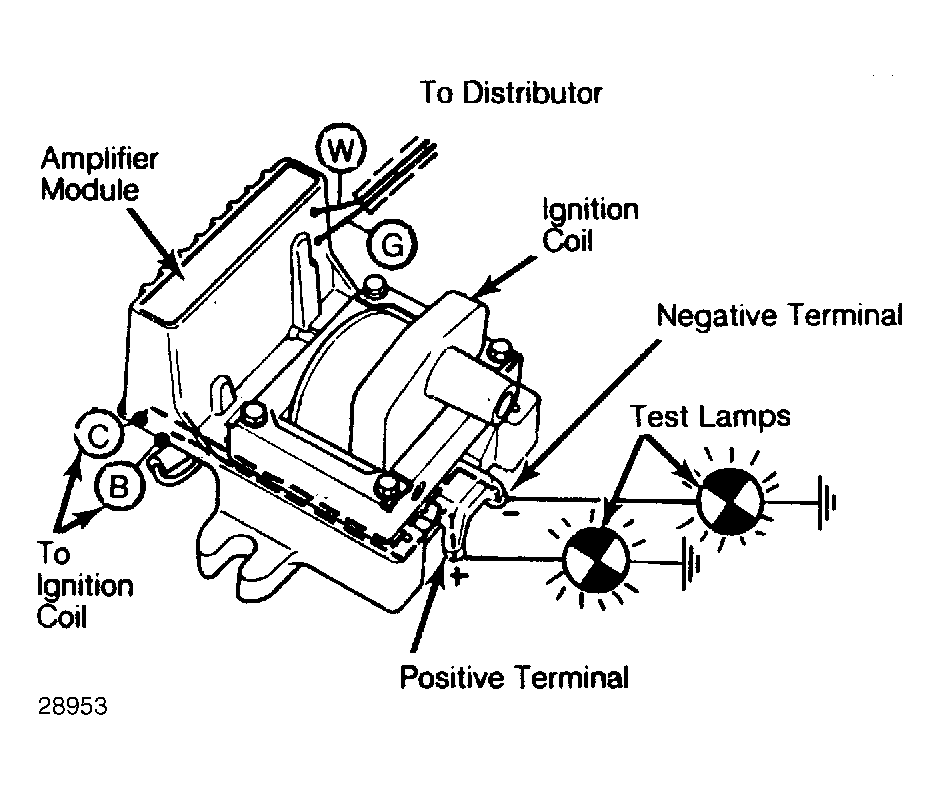

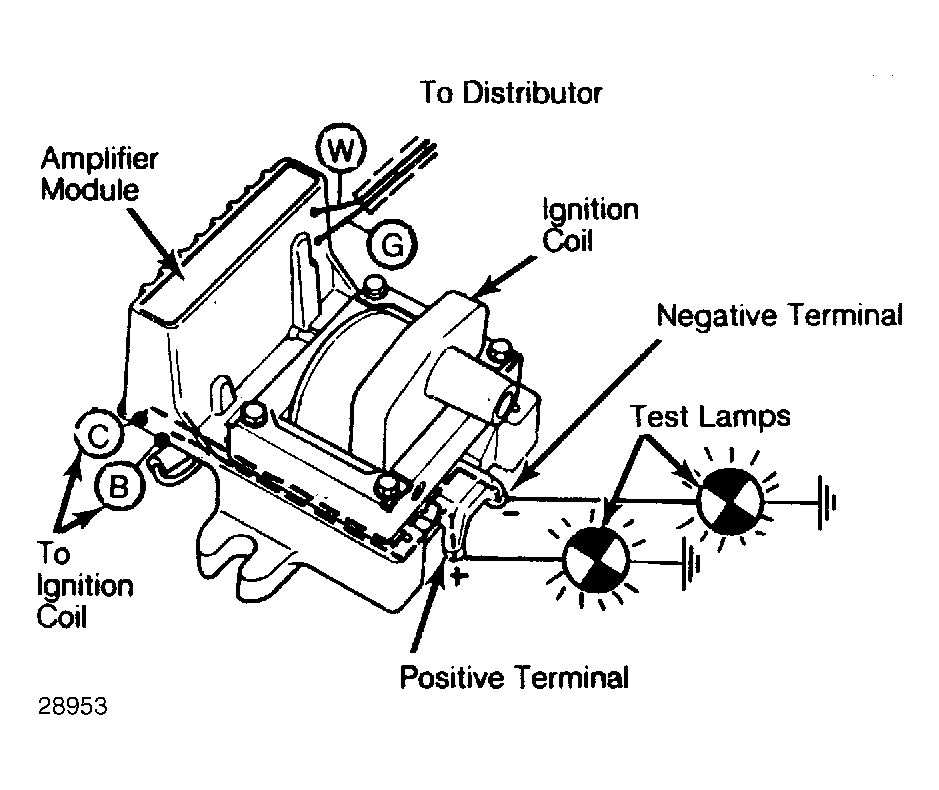

- Connect a 12-volt test lamp between the coil positive terminal and ground. Turn ignition on. Test lamp should light. If not, check feed wire to coil. See Fig 1.
- Connect test lamp between the coil negative terminal and ground. Turn ignition on. Test lamp should again light. If not, check if coil primary circuit is broken or if amplifier module's power transistor is shorted.
